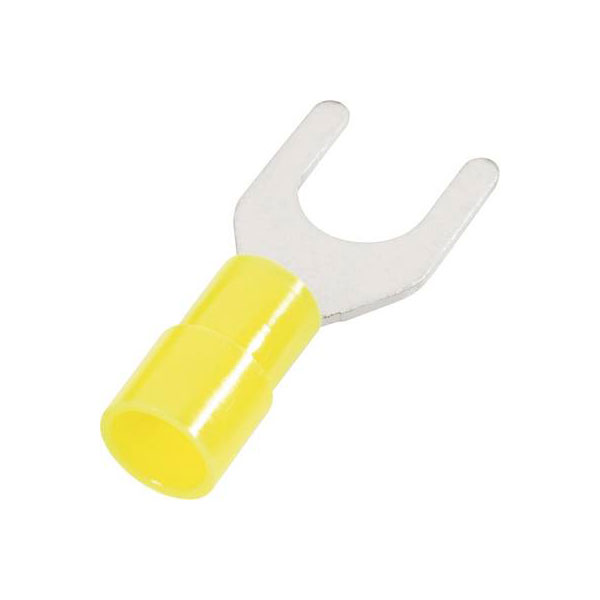

Cimco 180166 U Terminal 4-6mm² Hole 8.4mm Partially Insulated Yellow

Image Representative of Range

Cimco 180166 U Terminal 4-6mm² Hole 8.4mm Partially Insulated Yellow

Cimco
Standard range
Order Code:

11-5925

Brand: Cimco MPN: 180166 EAN-13: 2050001250896
Qty Unit Price (Ex VAT)
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
393 in stock, despatched in 4 working days

Manufactured by Cimco, the 180166 U terminal is a partially insulated crimp connector designed to accommodate wire sizes of 4 mm² to 6 mm². Featuring an 8.4 mm diameter hole, it is coloured yellow for easy identification. This U terminal is typically used in electrical installations and circuit connections where a secure and reliable wire termination is needed.
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 8.4mm
Insulation PA (polyamide), halogen free
Insulation material PA
Insulation type Partially insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Size M8
Support sleeve No
Temperature range -60 - +105°C
Thread Size M8
Type U terminal
