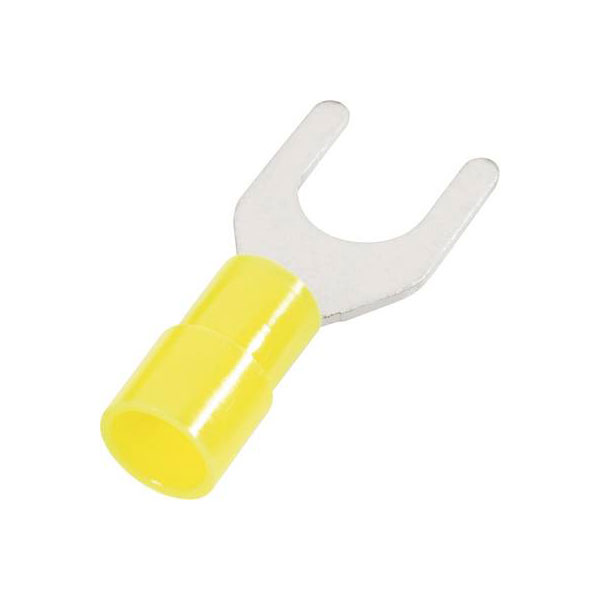

Cimco 180162 U Terminal 4-6 mm² Partially Insulated Yellow 1 piece

Image Representative of Range

Cimco 180162 U Terminal 4-6 mm² Partially Insulated Yellow 1 piece

Cimco
Order Code:

11-5923

Brand: Cimco MPN: 180162 EAN-13: 2050001250872
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
488 in stock, despatched in 4 working days

Cimco's U terminal, part number 180162, is a partially insulated yellow connector designed for 4 mm² to 6 mm² wires with a 5.3 mm hole diameter. This crimp connector provides a secure connection for electrical wiring applications. It is commonly used in electrical installations, ensuring reliable conductivity and insulation.
Colour Yellow
Insulation PA
Maximum Wire Size mm2 6mm2
Maximum Wire Size AWG 10
Contact Material Cathode copper, tin plated
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 5.3mm
Insulation Option Partially Insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 6mm²
Min. cross section 4mm²
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M5
Type Fork Terminals
