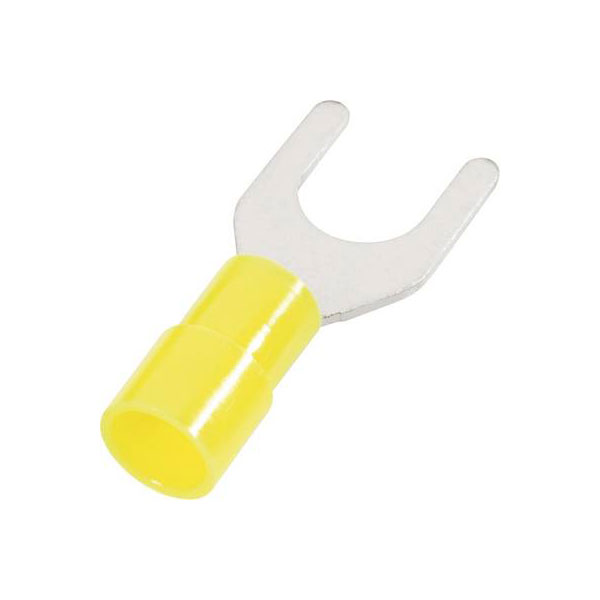

Cimco 180160 U Terminal 4-6mm² Partially Insulated Yellow Hole Dia4.3mm

Image Representative of Range

Cimco 180160 U Terminal 4-6mm² Partially Insulated Yellow Hole Dia4.3mm

Cimco
Standard range
Order Code:

11-5922

Brand: Cimco MPN: 180160 EAN-13: 2050001250865
Qty Unit Price (Ex VAT)
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
200 in stock, despatched in 4 working days

The Cimco 180160 U terminal is a crimp connector designed for wire gauges of 4 mm² to 6 mm². It features a 4.3 mm hole and is partially insulated in yellow. This terminal is typically used in electrical connection applications to ensure secure and reliable joins.
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Hole Ø 4.3mm
Insulation PA (polyamide), halogen free
Insulation material PA
Insulation type Partially insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Size M4
Support sleeve No
Temperature range -60 - +105°C
Thread Size M4
Type U terminal
