Cimco 180148 U Terminal 1.50-2.50 mm² Dia6.5 mm Partially Insulated Blue

Image Representative of Range

Cimco 180148 U Terminal 1.50-2.50 mm² Dia6.5 mm Partially Insulated Blue

Cimco
Order Code:

11-5921

Brand: Cimco MPN: 180148 EAN-13: 2050001250858
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
132 in stock, despatched in 4 working days

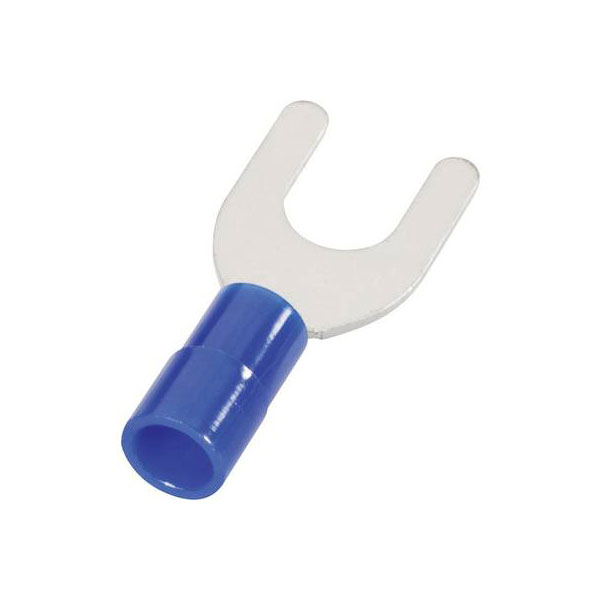

The Cimco U terminal, model 180148, is a blue, partially insulated crimp connector designed for wire sizes between 1.50 mm² and 2.50 mm². It features a hole diameter of 6.5 mm, making it suitable for secure electrical connections. Typically used in automotive and industrial applications, it ensures reliable termination for various electrical systems.
Insulation PA
Contact Material Cathode copper, tin plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Hole Ø 6.5mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 2.50mm²
Min. cross section 1.50mm²
Size M5
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M5
Type U terminal
