Cimco 180144 U Terminal 1.50-2.50mm² Dia4.3mm Partially Insulated Blue

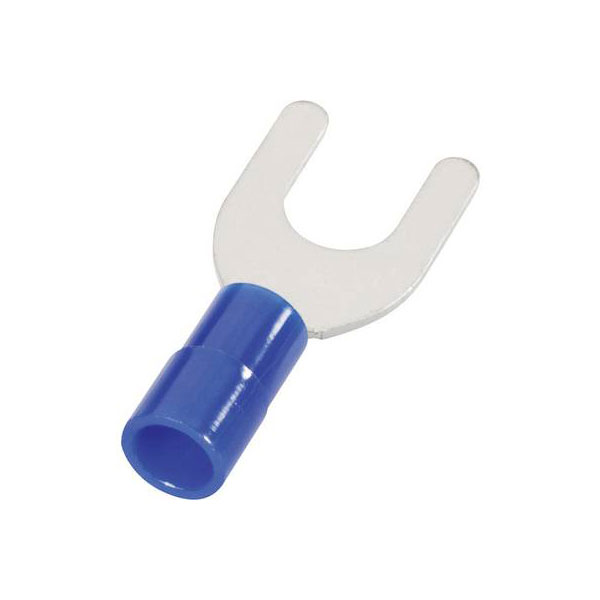

Image Representative of Range

Cimco 180144 U Terminal 1.50-2.50mm² Dia4.3mm Partially Insulated Blue

Cimco
Order Code:

11-5919

Brand: Cimco MPN: 180144 EAN-13: 2050001250834
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,179 in stock, despatched in 4 working days

Cimco 180144 is a U terminal designed for wire sizes of 1.50 mm² to 2.50 mm² with a hole diameter of 4.3 mm. It is partially insulated and blue, making it suitable for secure electrical connections. This crimp connector is typically used in electrical installations requiring reliable blade or spade terminals.
Insulation PA
Type U terminal
Contact Material Cathode copper, tin plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Hole Ø 4.3mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 2.50mm²
Min. cross section 1.50mm²
Size M4
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M4
