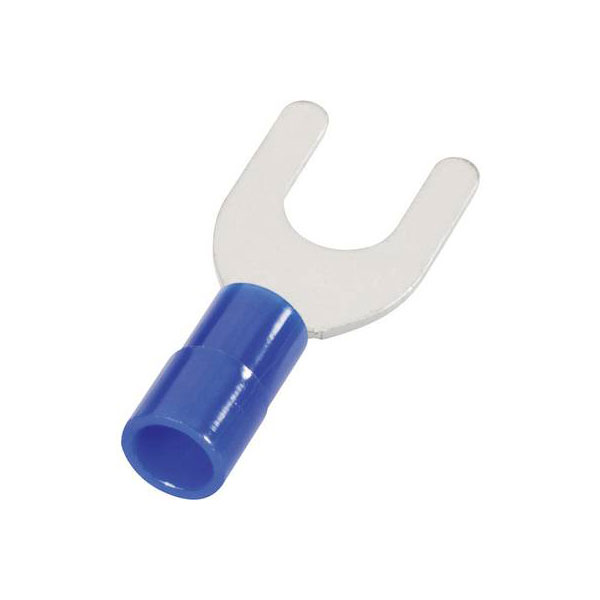

Cimco 180140 U Terminal 1.50-2.50 mm² 3.2 mm Hole Blue Insulated 1 piece

Image Representative of Range

Cimco 180140 U Terminal 1.50-2.50 mm² 3.2 mm Hole Blue Insulated 1 piece

Cimco
Standard range
Order Code:

11-5918

Brand: Cimco MPN: 180140 EAN-13: 2050001250827
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
311 in stock, despatched in 4 working days

The Cimco 180140 U terminal is a partially insulated, blue crimp connector designed for wire sizes 1.50 mm² to 2.50 mm². It features a 3.2 mm hole diameter for secure connections in electrical applications. Typically used in electrical and automotive industries, it ensures reliable performance in various wiring tasks.
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Hole Ø 3.2mm
Insulation PA (polyamide), halogen free
Insulation material PA
Insulation type Partially insulated
Manufacturer part # 180140
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 180140
RoHS-compliant Yes
Size M3
Support sleeve No
Temperature range -60 - +105°C
Thread Size M3
Type U terminal
