Cimco 180128 U Terminal 0.50-1 mm² Partially Insulated Red 1 piece

Image Representative of Range

Cimco 180128 U Terminal 0.50-1 mm² Partially Insulated Red 1 piece

Cimco
Order Code:

11-5917

Brand: Cimco MPN: 180128 EAN-13: 2050001250810
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
122 in stock, despatched in 4 working days

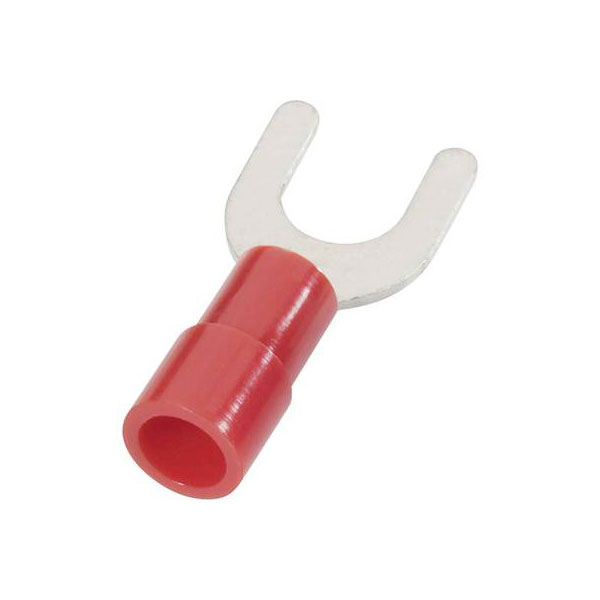

The Cimco 180128 U terminal is a partially insulated crimp connector with a hole diameter of 6.5 mm, suitable for wire sizes 0.50 mm² to 1 mm². Its red insulation helps improve visibility and identification in electrical applications. This U terminal is typically used in wiring tasks where secure and reliable electrical connections are required.
Colour Red
Insulation PA
Maximum Wire Size mm2 1.0mm2
Maximum Wire Size AWG 18
Contact Material Cathode copper, tin plated
Cross Section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Hole Ø 6.5mm
Insulation Option Partially Insulated
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 1mm²
Min. cross section 0.50mm²
Size M6
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M6
Type Fork Terminals
