Cimco 180126 U Terminal 0.50-1 mm² Partially Insulated Red

Image Representative of Range

Cimco 180126 U Terminal 0.50-1 mm² Partially Insulated Red

Cimco
Standard range
Order Code:

11-5916

Brand: Cimco MPN: 180126 EAN-13: 2050001250803
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
164 in stock, despatched in 4 working days

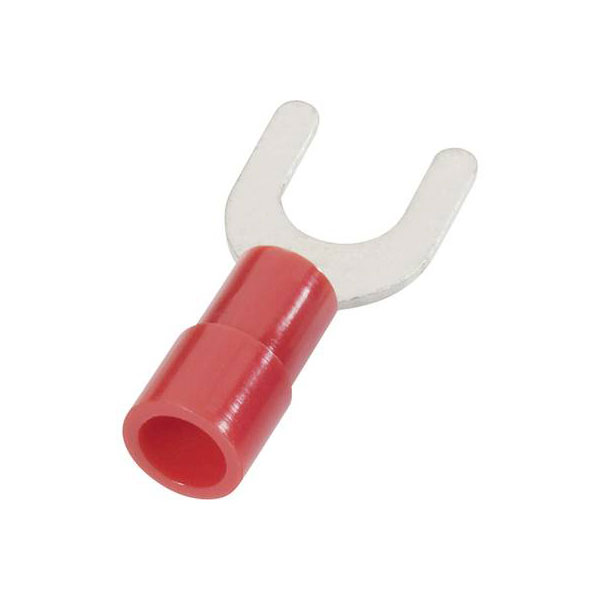

The Cimco U terminal, model 180126, is a partially insulated blade terminal suited for wire sizes from 0.50 mm² to 1 mm² and features a hole diameter of 5.3 mm. It is available in red and designed for secure and reliable electrical connections in industrial or automotive wiring applications. As a crimp connector, it ensures efficient termination of electrical circuits in various electrical and electronic installations.
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Hole Ø 5.3mm
Insulation PA (polyamide), halogen free
Insulation material PA
Insulation type Partially insulated
Manufacturer part # 180126
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 180126
RoHS-compliant Yes
Size M5
Support sleeve No
Temperature range -60 - +105°C
Thread Size M5
Type U terminal
