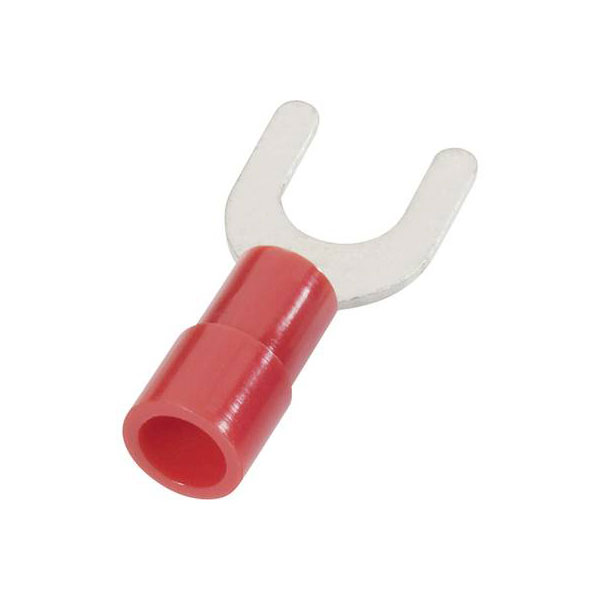

Cimco 180120 U Terminal 0.50-1 mm² 3.2 mm Hole Partially Insulated Red

The Cimco 180120 is a partially insulated U terminal designed for wire sizes between 0.50 mm² and 1 mm², featuring a hole diameter of 3.2 mm and a red colour. Manufactured by Cimco, it is a reliable crimp connector used to securely attach wires to electrical terminals. This type of terminal is commonly employed in electrical and automotive applications for creating durable and efficient connections.

Colour	Red
Insulation	PA
Maximum Wire Size mm2	1.0mm²
Maximum Wire Size AWG	18
Contact Material	Cathode copper, tin plated
Cross Section	0.5 - 1mm²
Cross-section range	0.50 - 1mm²
Factory colour	Red
Hole Ø	3.2mm
Insulation Option	Partially Insulated
Material (details)	Cu-ETP according to DIN EN 13600
max. cross section	1mm²
Min. cross section	0.50mm²
Size	M3
Support sleeve	No
Temperature Range	-60 - +105°C
Thread Size	M3
Type	Fork Terminals
