Cimco 180118 U Terminal 0.10-0.40 mm² 3.3mm Hole Partially Insulated

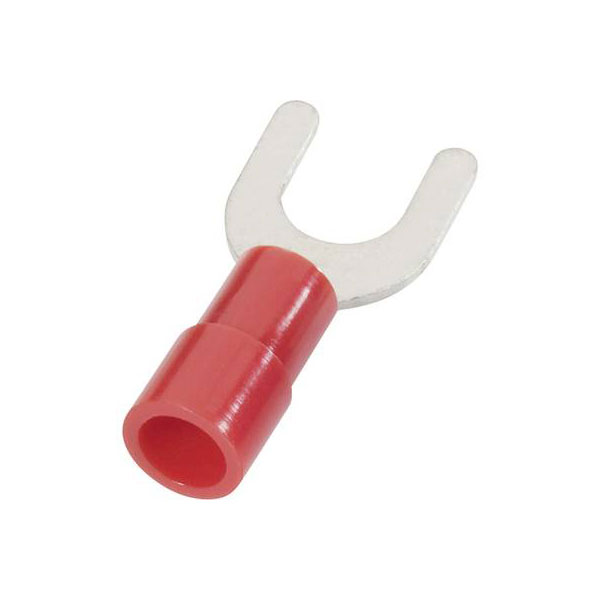

Image Representative of Range

Cimco 180118 U Terminal 0.10-0.40 mm² 3.3mm Hole Partially Insulated

Cimco
Order Code:

11-5913

Brand: Cimco MPN: 180118 EAN-13: 2050001250773
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
110 in stock, despatched in 4 working days

The Cimco 180118 is a yellow U terminal that accommodates wire sizes from 0.10 mm² to 0.40 mm² and features a 3.3 mm hole. This partially insulated crimp connector is designed for secure electrical connections. It is commonly used in electrical installations for connecting wires to terminal blocks or bus bars.
Insulation PA
Type U terminal
Contact Material Cathode copper, tin plated
Cross Section 0.1 - 0.4mm²
Cross-section range 0.10 - 0.40 mm²
Factory colour Yellow
Hole Ø 3.3mm
Material (details) Cu-ETP according to DIN EN 13600
max. cross section 0.40mm²
Min. cross section 0.10mm²
Size M3
Support sleeve No
Temperature Range -60 - +105°C
Thread Size M3
