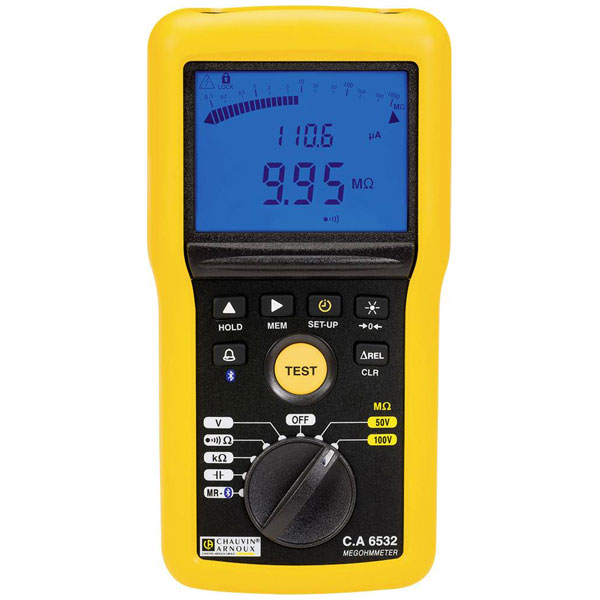

Chauvin Arnoux P01140832 C.A.6532 Insulation Tester 50 V/100 V 20 GΩ

Chauvin Arnoux
Order Code:

02-2924

Brand: Chauvin Arnoux MPN: P01140832
Qty Unit Price (Ex VAT)
1+ £826.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 26/12/2025

Chauvin Arnoux manufactures the C.A 6532 insulation tester, which provides electrical isolation testing at 50 V and 100 V with a resistance measurement range up to 20 GO. This ohmmeter is ideal for resistance testing and ensures reliable ohm tests. Typical applications include testing electrical installation insulation and assessing the integrity of cables and equipment.
Type Insulation tester
Calibrated Manufacturer's standards (no certificate)
IP Rating IP54
Continuity testing 0 - 100 Ω
Dimensions (L x W x H) 60 x 211 x 108 mm
Display Type Digital (LCD)
Frequency Range 15.3 Hz - 399.9 Hz
Height 108mm
Insulation resistance (max.) 20 GΩ
Interfaces Bluetooth® 2.0
Length 60mm
Max. frequency 399.9Hz
Min. frequency 15.3Hz
Reading category CAT IV 600 V
Reading range - resistance 0 - 3999 Ω
Voltage reading range (max.) 399.9V
Voltage reading range (min.) 0.3V
Width 211mm
