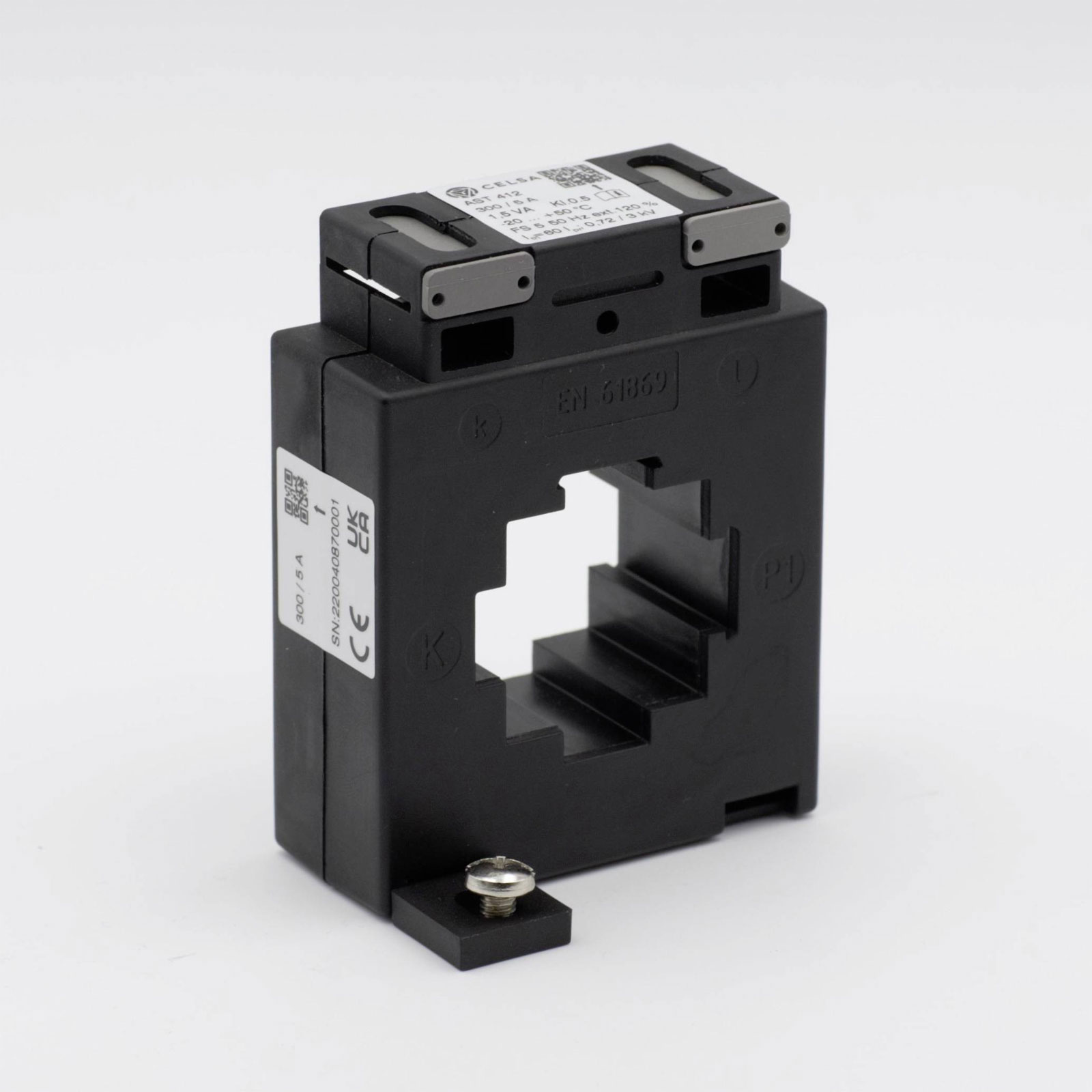

Celsa 70017-3578 EAST412 Current Transformer 250/5A 5VA 41x41mm PTB Certified

The Celsa EAST412 is a current transformer attachment, manufactured by Celsa, designed to convert primary currents of 250A to secondary currents of 5A. It features a line feed-through measuring 41 x 41 mm, with a diameter of 33 mm, suitable for use in monitoring and measuring electrical currents in various applications. The product is ideal for use in electrical panels and switchgear where accurate current measurement and monitoring are essential.

Type	Current transformer attachment
Primary Current	250A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	13-41mm
Line feed-through (H x W)	41 x 41 mm
Line feed-through (H)	41mm
Line feed-through (W)	41mm
Line feed-through diameter	33mm
Misc Attribute	EAST412 250/5A 5VA Kl. 0.5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	33mm
Overcurrent limiting factor	FS 5
Rated primary current	250A
Rated secondary apparent power	5VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	13-41mm
With contact protection	TRUE
With copper rail	FALSE
