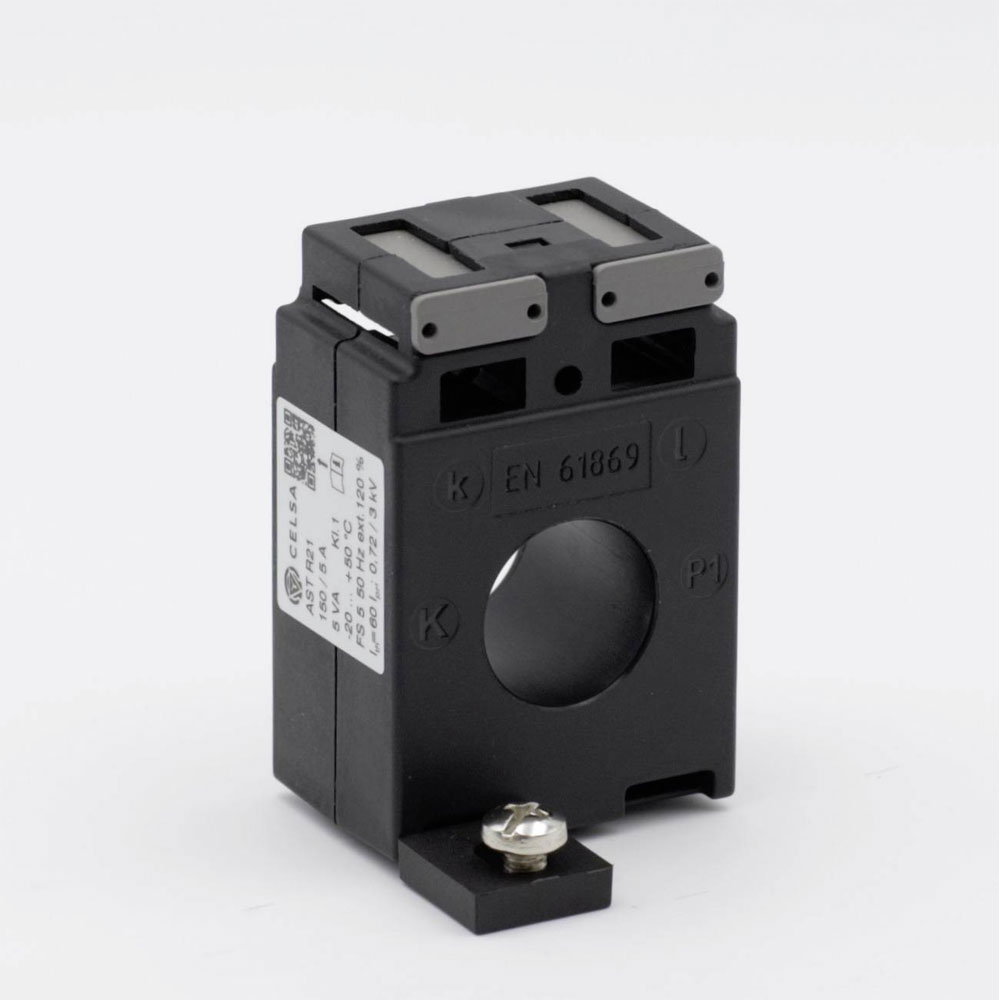

Celsa 70017-3358 EASTR21 Current Transformer, 150/5A, PTB Approved

The Celsa EASTR21 150/5A 2.5VA Kl. 0.5 current transformer attachment is designed to convert a primary current of 150 A to a secondary current of 5 A. This model features a line feed-through diameter of 21 mm, making it suitable for accurate monitoring and measurement applications. Typically used in electrical systems, the Celsa 70017-3358 is ideal for industrial settings requiring precise current measurement.

Type	Current transformer attachment
Primary Current	150A
Accuracy Class	0.5
Calibrated	TRUE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	21mm
Misc Attribute	EASTR21 150/5A 2.5VA Kl. 0.5
Model	Attachable current transformer
Number of primary inputs	1
Opening diameter	21mm
Overcurrent limiting factor	FS 5
Rated primary current	150A
Rated secondary apparent power	25VA
Rated secondary current	5A
Secondary connection	Screw connection
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
