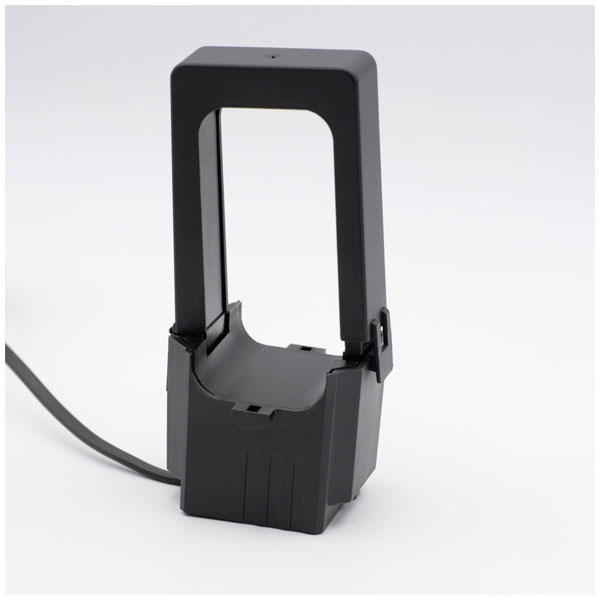

Celsa 70006-1345 TQ 84 Cable Current Transformer 1000/5A 42mm

The Celsa TQ 84 1000/5A cable current transformer is designed to convert a primary current of 1000 A to a secondary current of 5 A, suitable for systems requiring precise current measurement. With a line feed-through diameter of 42 mm and a class accuracy of 0.5, it ensures reliable performance in monitoring and measurement applications. Typically used in electrical systems for current monitoring and safety, this unit helps in managing power efficiently.

Type	Cable current transformer
Primary Current	1000A
Accuracy Class	0.5
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	42mm
Misc Attribute	TQ 84 1000/5A 0.5VA Kl. 0.5
Model	Cable rebuilding current converter
Number of primary inputs	1
Opening diameter	42mm
Overcurrent limiting factor	FS 5
Rated primary current	1000A
Rated secondary apparent power	5VA
Rated secondary current	5A
Secondary connection	Cable
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
