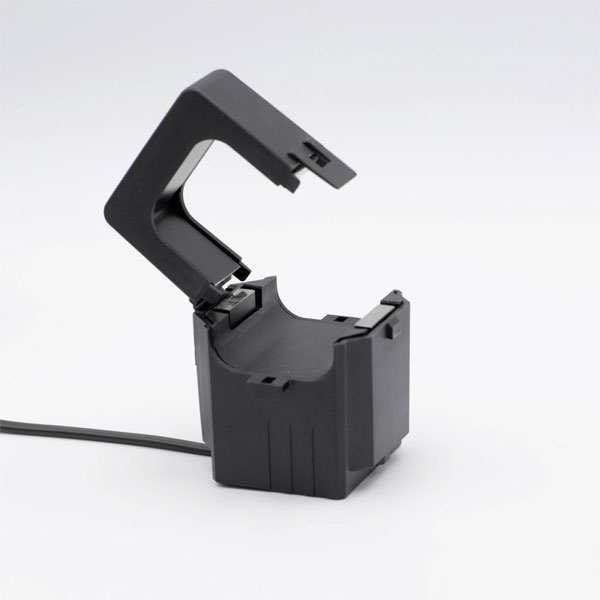

Celsa 70006-1324 TQ 42 Cable Transformer 400/5A 42mm Compact Installation

The Celsa cable current transformer, model TQ 42 400/5A, is designed for a primary current of 400 A and a secondary current of 5 A, with a line feed-through diameter of 42 mm. Manufactured under the item number 70006-1324, this high-precision device serves in AC current conversion tasks and is often utilised in monitoring and measuring electric currents in industrial environments. This transformer is notable for its accuracy and reliability in creating a current loop

Type	Cable current transformer
Primary Current	400A
Accuracy Class	1
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	42mm
Misc Attribute	TQ 42 400/5A 0.5VA Kl. 1
Model	Cable rebuilding current converter
Number of primary inputs	1
Opening diameter	42mm
Overcurrent limiting factor	FS 5
Rated primary current	400A
Rated secondary apparent power	5VA
Rated secondary current	5A
Secondary connection	Cable
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
