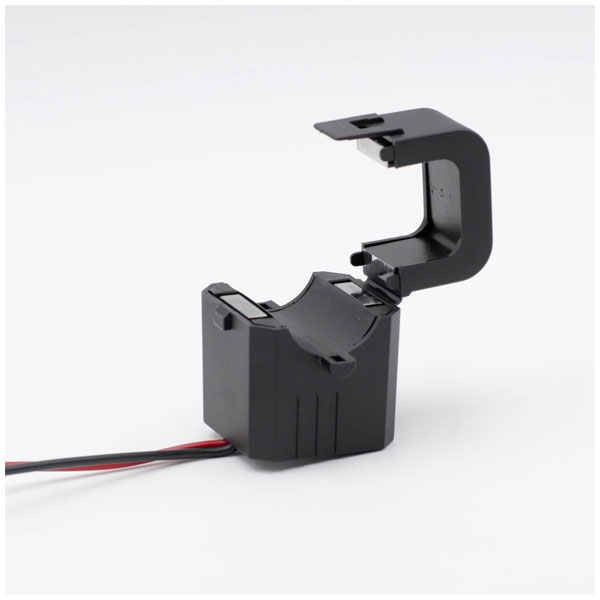

Celsa 70006-1053 TQ 18-B Transformer 150A/5A Compact Quick Install

The Celsa TQ 18-B 150/5A 1VA Kl. 1 is a cable current transformer designed for efficient current conversion, with a primary current of 150 A and a secondary current of 5 A. Manufactured by Celsa, it features a line feed-through diameter of 18 mm, making it suitable for applications requiring precise current measurement and control. This current converter is ideal for integration into electrical systems where reliable and accurate current monitoring is essential.

Type	Cable current transformer
Primary Current	150A
Accuracy Class	1
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	18mm
Misc Attribute	TQ 18-B 150/5A 1VA Kl. 1
Model	Cable rebuilding current converter
Number of primary inputs	1
Opening diameter	18mm
Overcurrent limiting factor	FS 5
Rated primary current	150A
Rated secondary apparent power	1VA
Rated secondary current	5A
Secondary connection	Cable
Secondary current	5A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
