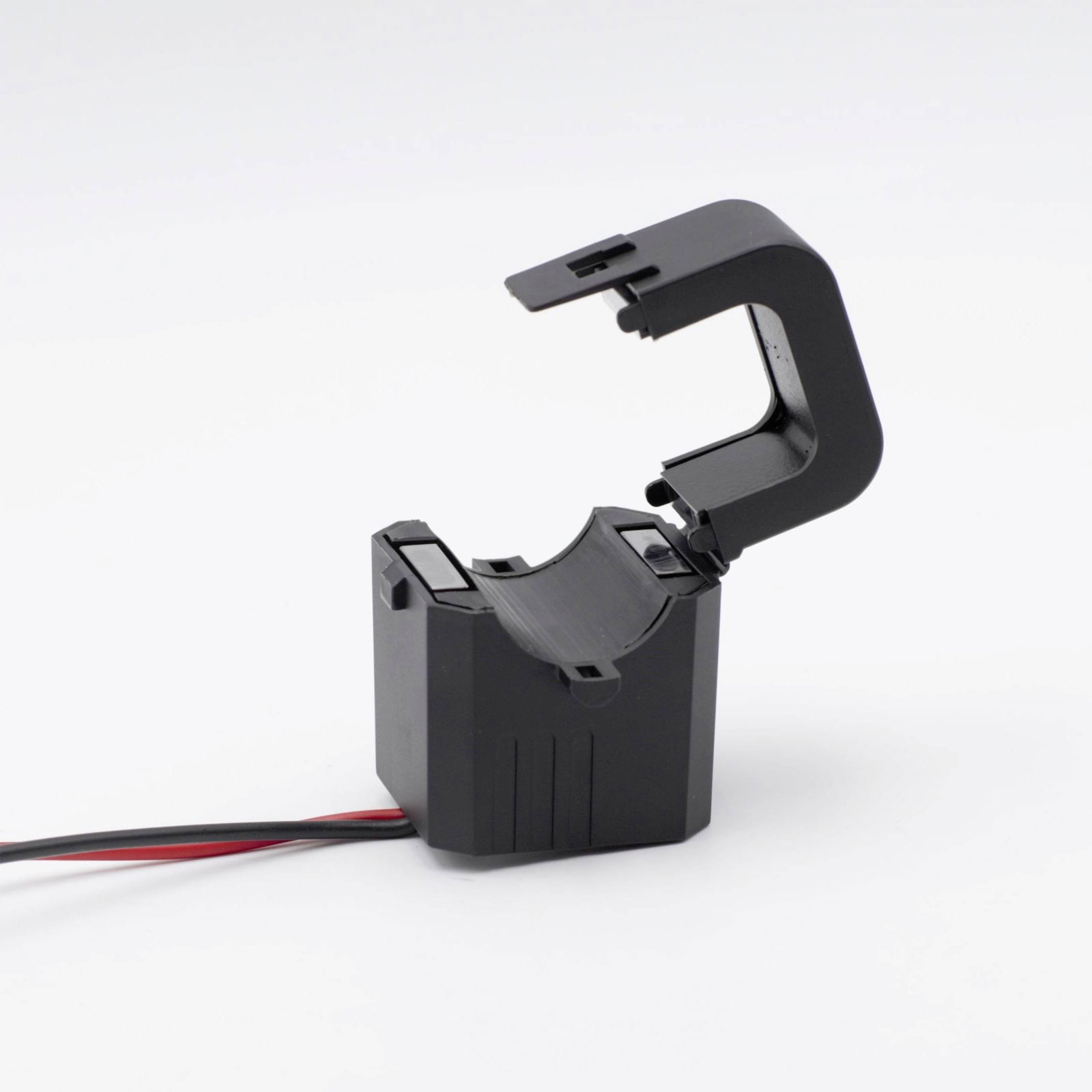

Celsa 70006-1015 TQ 27 Cable Current Transformer 400/1A 28mm Compact

The Celsa TQ 27 400/1A 0.2VA Kl. 1 cable current transformer is designed for 400 A primary and 1 A secondary currents, with a line feed-through diameter of 28 mm. This reliable device, identified as Celsa 70006-1015, ensures accurate current conversion in industrial applications. It is typically used for monitoring and measuring current in electrical systems.

Type	Cable current transformer
Primary Current	400A
Accuracy Class	1
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	28mm
Misc Attribute	TQ 27 400/1A 0.2VA Kl. 1
Model	Cable rebuilding current converter
Number of primary inputs	1
Opening diameter	28mm
Overcurrent limiting factor	FS 5
Rated primary current	400A
Rated secondary apparent power	2VA
Rated secondary current	1A
Secondary connection	Cable
Secondary current	1A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
