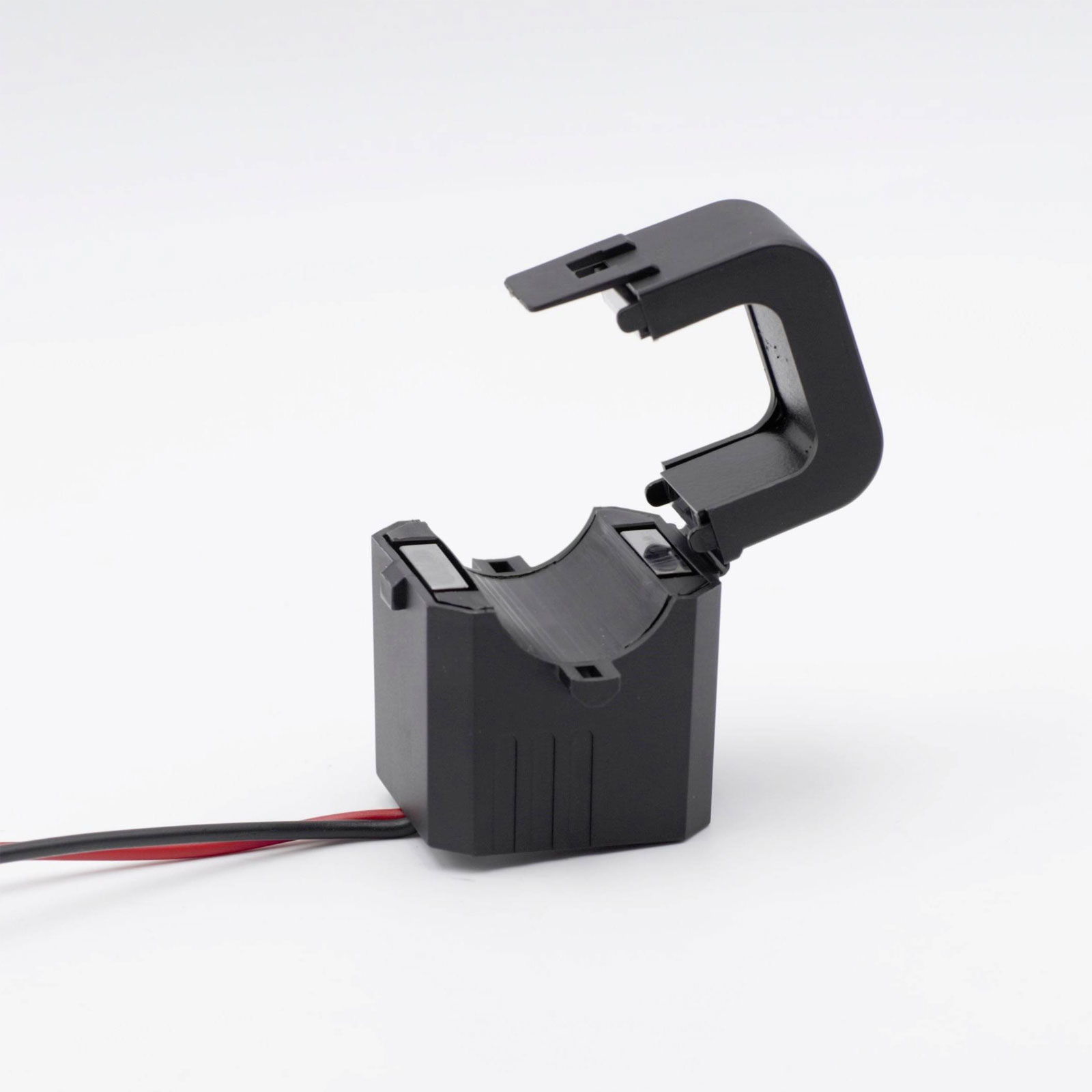

Celsa 70006-1014 TQ 27 Transformer 300/1A 0.2VA Compact Easy Install

The Celsa TQ 27 300/1A cable current transformer is designed with a primary current of 300 A and a secondary current of 1 A, featuring a line feed-through diameter of 28 mm. Manufactured by Celsa, this current converter ensures precise measurement and is suitable for applications requiring accurate current monitoring and transformation, such as in electrical metering systems. The compact design and superior performance make the Celsa 70006-1014 ideal for integration in various

Type	Cable current transformer
Primary Current	300A
Accuracy Class	1
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	28mm
Misc Attribute	TQ 27 300/1A 0.2VA Kl. 1
Model	Cable rebuilding current converter
Number of primary inputs	1
Opening diameter	28mm
Overcurrent limiting factor	FS 5
Rated primary current	300A
Rated secondary apparent power	2VA
Rated secondary current	1A
Secondary connection	Cable
Secondary current	1A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
