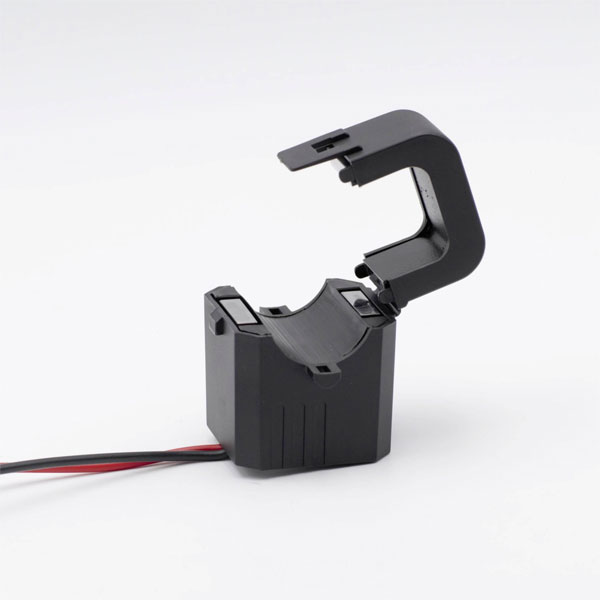

Celsa 70006-1012 TQ 27 Cable Transformer 200A/1A Easy Install Compact

Celsa's TQ 27 200/1A is a cable current transformer designed for a primary current of 200 A and a secondary current of 1 A. The device features a line feed-through diameter of 28 mm and offers precise current measurement, enhancing its usefulness in monitoring and control applications. Typical uses include integrating into current loops for industrial installations, making the Celsa 70006-1012 an essential component for accurate electrical measurement and control.

Type	Cable current transformer
Primary Current	200A
Accuracy Class	1
Calibrated	FALSE
Height opening	0-0mm
Line feed-through (H)	0mm
Line feed-through (W)	0mm
Line feed-through diameter	28mm
Misc Attribute	TQ 27 200/1A 0.2VA Kl. 1
Model	Cable rebuilding current converter
Number of primary inputs	1
Opening diameter	28mm
Overcurrent limiting factor	FS 5
Rated primary current	200A
Rated secondary apparent power	2VA
Rated secondary current	1A
Secondary connection	Cable
Secondary current	1A
Snap mounting	FALSE
Width opening	0-0mm
With contact protection	TRUE
With copper rail	FALSE
