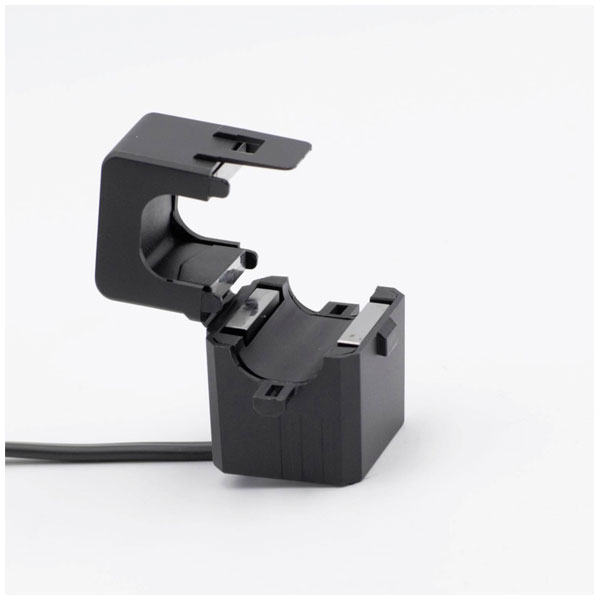

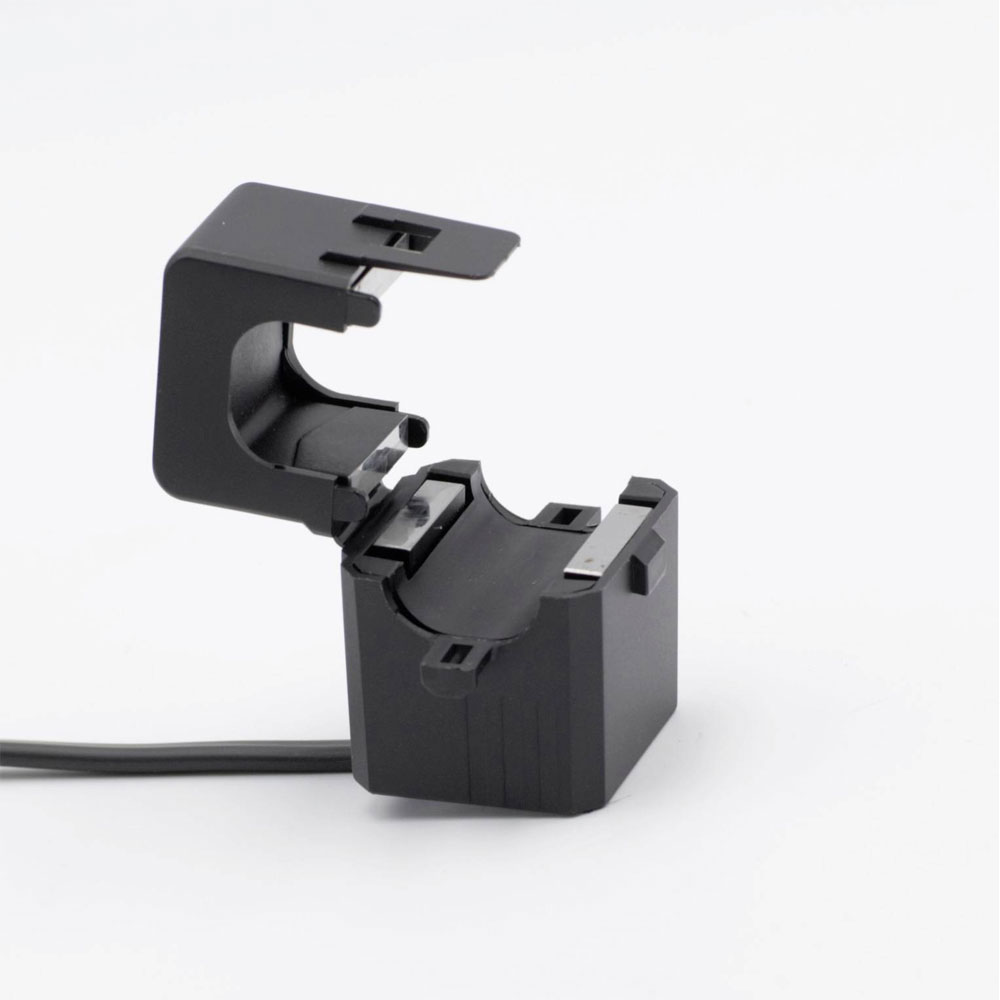

Celsa 70006-1003 TC 18 Cable Transformer 100/1A, Ø18mm, Easy Install

Celsa
Standard range
Order Code:

08-7591

Brand: Celsa MPN: 70006-1003 EAN-13: 9503716594883
Qty Unit Price (Ex VAT)
1+ £59.72
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
18 in stock, despatched in 4 working days

The Celsa cable current transformer, model TC 18 100/1A 0.2VA Kl. 3, is designed to handle a primary current of 100 A while providing a secondary current of 1 A. With a line feed-through diameter of 18 mm, it is typically used in monitoring and measuring electrical systems. Ideal for precise current measurements in power distribution applications, the Celsa 70006-1003 ensures accurate and reliable performance.
Type Cable current transformer
Accuracy class 3
Calibrated FALSE
Height opening 0-0mm
Line feed-through (H) 0mm
Line feed-through (W) 0mm
Line feed-through diameter 18mm
Misc Attribute TC 18 100/1A 0.2VA Kl. 3
Model Cable rebuilding current converter
Number of primary inputs 1
Opening diameter 18mm
Overcurrent limiting factor FS 5
Primary current 100A
Rated primary current 100A
Rated secondary apparent power 2VA
Rated secondary current 1A
Secondary connection Cable
Secondary current 1A
Snap mounting FALSE
Width opening 0-0mm
With contact protection TRUE
With copper rail FALSE
