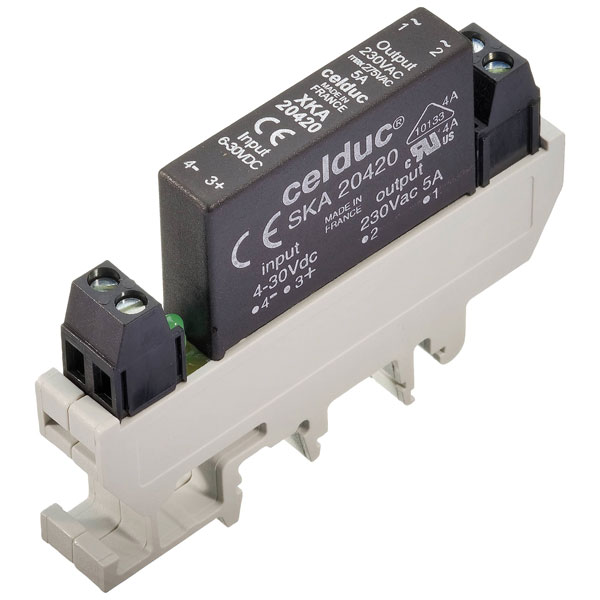

Celduc XKA70420 Solid State Relay 5 A max 275 V AC switching

Celduc XKA70420 is a solid state relay designed for switching applications, featuring a maximum switching capacity of 5 amperes at 275 volts AC. This semiconductor switch utilises zero crossing technology to minimise electrical noise and enhance reliability during operation. As a key component in electronic systems, the XKA70420 solid state relay offers robust performance for applications requiring high-frequency switching, such as motor control, lighting systems, and industrial automation. Its solid-state construction ensures durability and a long lifespan, which are critical for maintaining efficiency and reducing maintenance requirements in engineering environments.

Type	XKA70420
Contact Configuration	1NO
Switching Current	5A
Connection	Screws
Content	1
Control Current (max.)	14mA
Control voltage range	15, 15 - 30, 30 V AC, V DC
Max. temperature	+80°C
Maximum Temperature	+80°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mounting Type	DIN rail
Product Type	SSR
Surge Current (max.)	100A
Switching voltage (max.)	275V AC
Switching voltage (min.)	12V AC
