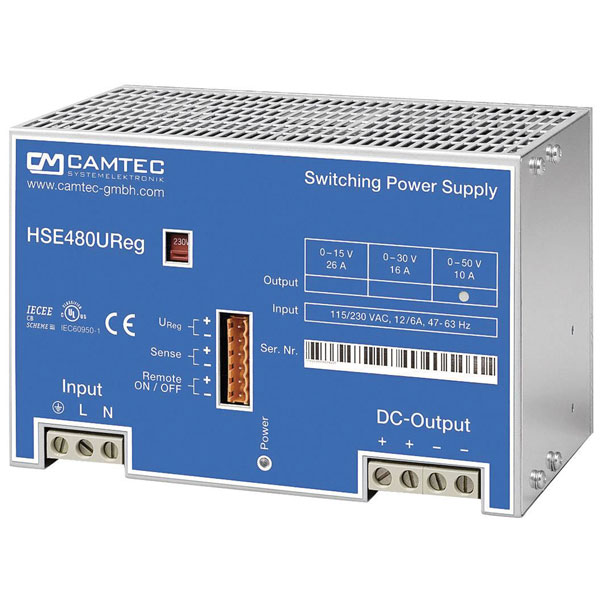

Camtec 304.1083.003CA HSEU regulation Bench PSU 0-50V DC 0-15A 480W 1 Output

The Camtec HSEUIreg04801.50T is an adjustable power supply unit offering 0 - 50 V DC and 0 - 15 A, with a power rating of 480 W. It is a programmable laboratory power supply designed for bench use, ideal for industrial and laboratory applications. This bench PSU features a single output, making it suitable for various precision tasks.

Type	Bench PSU (adjustable voltage)
Output Current	480W
Output Voltage	50V DC
Number of Outputs	1
Manufactuers Warranty	1 Year
Input Voltage	90 - 265V AC
Calibrated to	Manufacturer's standards (no certificate)
Dimensions	(L x W x H) 114.5 x 200 x 130 mm
Height	130mm
Length	114.5mm
Load balance	± 0,2%
Max. output current	15A
Maximum Temperature	70°C
Min. temperature	-20°C
Misc Attribute 1	HSEUIreg04801.50T
Misc Attribute 2	Synchronised
MTBF	400000h
Output current (min.)	0A
Output current 1	0 - 15A
Output voltage (min.)	0V DC
Output Voltage 1	0 - 50V DC
Residual ripple	100mV
Weight	2900g
Width	200mm
