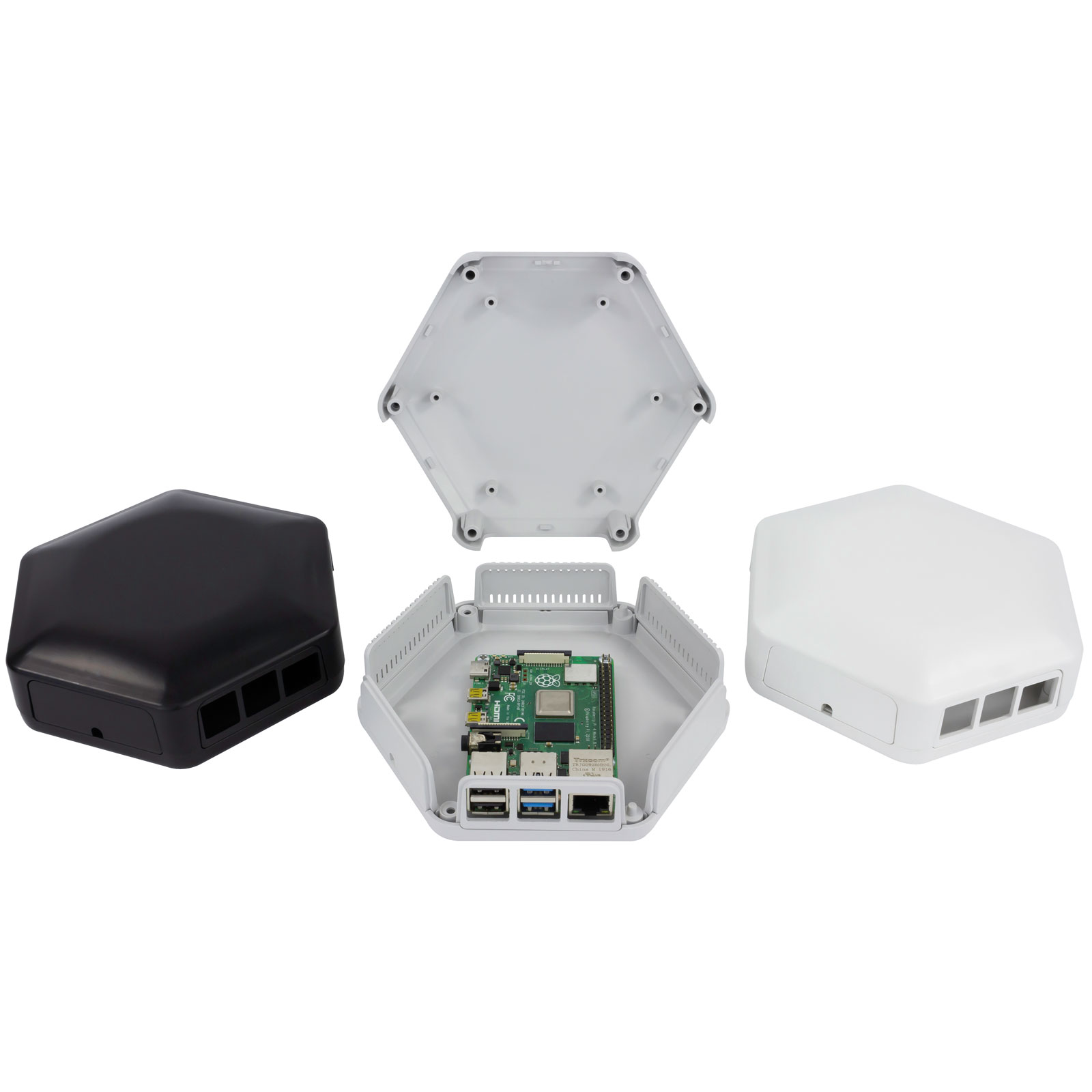

CamdenBoss Hex-Box IoT & Raspberry Pi Enclosures + Accessories

<p>The <b>Hex-Box</b> from <b>CamdenBoss</b> is a range of UK manufactured IoT (Internet of Things) enclosures that have been designed with the user in mind.</p> <p>With customisation and flexibility in mind, these 100% recyclable enclosures are made up from a top, bottom and six self-retaining panels, either solid or vented, that you can mix and match to suit your requirements. Whatever the configuration, the enclosures offer the connector access and air flow that make them ideal for industrial IoT settings. There is also a version that is designed for the <b>Raspberry Pi</b>.</p> <p>The design features and modern aesthetic create the perfect enclosure for walls (when paired with the wall mount bracket) or desktops (when paired with the rubber feet), each sold separately.</p> <p>These enclosures are perfect for industrial IoT, smart home, smart office, retail, speaker/ alarm buzzer, meeting room device, network equipment, environmental sensor equipment, development board electronics, etc.</p>

• Available in black, white and grey with different panel options
• Standard unit includes base, top, 6 x panels, 3 x 16mm thread forming (Pozi CSK) screws
• PCB Mounting in the top and base
• Number index in base aids wall mounting, PCB orientation and assembly
• Allows cable entries from all sides
• Guide for cable knock-out
• Smooth bevelled lid with flat top
• Suitable for a 2.5” screen and perfect for digital printing
• UK Manufactured from 100% recyclable material

Type	Grey	Black	White
6 Solid Panels	30-7703	30-7711	30-7719
5 Solid Panels and 1 Vented	30-7704	30-7712	30-7720
4 Solid Panels and 2 Vented	30-7705	30-7113	30-7721
3 Solid Panels and 3 Vented	30-7706	30-7714	30-7722
2 Solid Panels and 4 Vented	30-7707	30-7715	30-7723
1 Solid Panels and 5 Vented	30-7708	30-7716	30-7724
6 Vented Panels	30-7709	30-7717	30-7725
Pi Ready Enclosure	30-7710	30-7718	30-7726
Circular Wall Mount Bracket	30-7727	30-7728	30-7728
Rubber Feet (Pack of 6)	-	30-7730	-

Enclosure dimensions
External (L x W x H)	146 x 130 x 45mm
Internal (L x W x H)	122.5 x 125.5 x 34.5mm
Wall thickness	2.5mm
PCB Dimension max (base)	122.2mm HEX A/F
PCB Dimension max (top)	121.8mm HEX A/F
Materials
Base	UL94-V0 ABS
Top	UL94-V0 ABS
Screws	BZP (bright zinc plated steel)
Colours
Grey	RAL7047
Black	RAL9005
White	RAL9003
Screw torque	0.3Nm
Operating temperature	-10°C to +80°C
