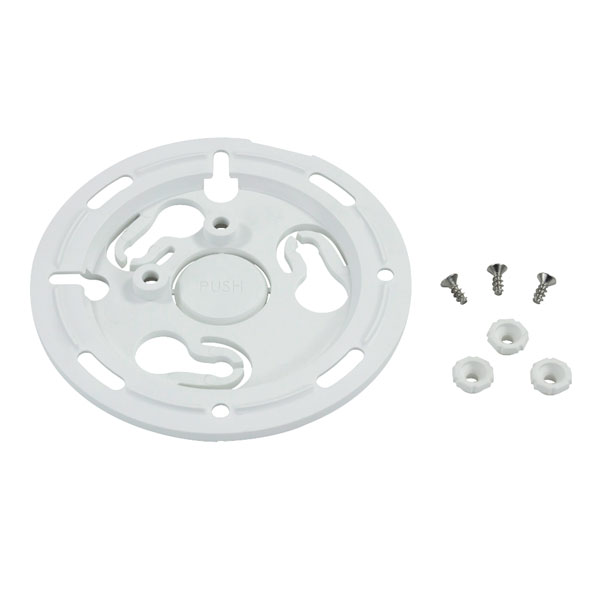

Using your Hex-Box with this circular wall mount bracket you will get a versatile wall mounting enclosure, increasing the versatility of the Hex-Box range.
The bracket is packed full of mounting options and offers seamless and discrete mounting to retain the modern aesthetic look of your housing, whilst gaining additional functionality.
- Colour white RAL9003
- Supplied with 1 x circular wall mount bracket, 3 x screws, 3 x lugs
- 2 x Keyhole mounting slots
- Allows for quick and easy wall mounting
- Raised rib standoffs
- Help with stability of the enclosure on uneven walls
- 2 x Sets of UK single gang back box mounting points In two off centre orientations
- 25mm Cable entry knockout for cable management
- Easy installation, screw lugs to enclosure, twist 30° degrees
- 4 x Static mount points/slots
- Provides easy and flexible wall mount fitting
| Wall mount bracket | UL94-V0 ABS |
| Wall mount lugs | UL94-V0 ABS |
| Screws | BZP (Bright Zinc Plated Steel) |
| Diameter | 98.3 mm |
| Weight | 23.6g |
Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.
| Colour |
White, RAL9003 |
| Enclosure Height |
45 |
| Enclosure Length |
146 |
| Enclosure Width |
130mm |
| External Features |
Smooth Bevelled Lid with Flat Top |
| IK Rating |
IK07 |
| Internal Features |
PCB Mounting in the Top and Base |
| IP Rating |
IP40 |
| Material |
ABS |
