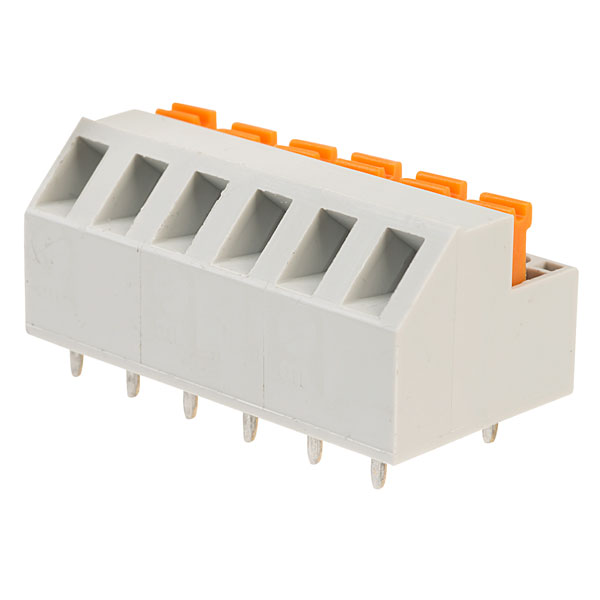

CamdenBoss CSTB/6 6 Way 12A 45 Degree Terminal Block 5.08mm

CamdenBoss
Order Code:

21-4322

Brand: CamdenBoss MPN: CSTB/6

Discontinued


End stackable 45° 6-way terminal block, part of the CamdenBoss CSTB series.


  • 6 poles
  • 5.08mm pitch
  • 10A current rating
  • 250V voltage rating
  • Solder termination
  • PCB mounting
  • 1 row
  • 4kV dielectric strength
  • 0.5 to 1.5mm² wire size
  • Tinned phosphor bronze contact material
  • Polyamide 66 housing material, grey colour
  • +120°C operating temperature
  • UL94-V0 flame retardant moulding
  • UL, VDE and CE approved
  • Manufacturer's part CSTB/6

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.


Pitch 5.08mm
No. of Ways 6
Mounting Type Through Hole
Mounting Direction 45°
Wire Gauge (AWG) 30 - 16 AWG
Wire Termination Screwless
Colour Grey
Current Rating 10A
No. of Levels 1
Voltage Rating 300V
