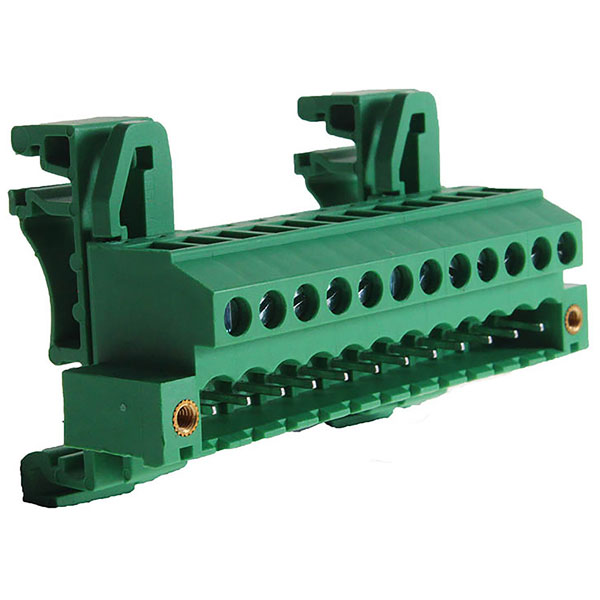

Camblock Plus CTBPD96VJ/12FL 5.08mm DIN Rail Vertical Male Flanged T/Block 12p

CamdenBoss
MPN
CTBPD96VJ/12FL
Brand
CamdenBoss
Order Code
20-3149
Country of Origin
China
View Full Product Range (7)
Qty Unit Price (Ex VAT)
250+ £4.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 250
Available to back orderPlease contact us for lead time

A 12 pole flanged pluggable male vertical 5.08mm pitch professional rising clamp terminal block designed for DIN rail mounting.

This connector is ideal for use in any installation and provides a versatile wire to board connection method.


  • Length 72.3mm
  • Rating 20A 450V
  • Flanged body
  • DIN Rail mounting
  • Can be reversed on DIN clips
  • Professional rising clamp terminals
  • Polarised mouldings

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.


Type Vertical Flanged Male Pluggable Terminal Block
Pitch 5.08mm
No. of Ways 12
No. of Levels 1
Termination Rising clamp
Width 72.3mm
Wire Gauge (mm²) 2.5mm²
Current Rating 20A
Length 72.3mm
Voltage Rating 450V
Wire Gauge (AWG) 28 to 14AWG
