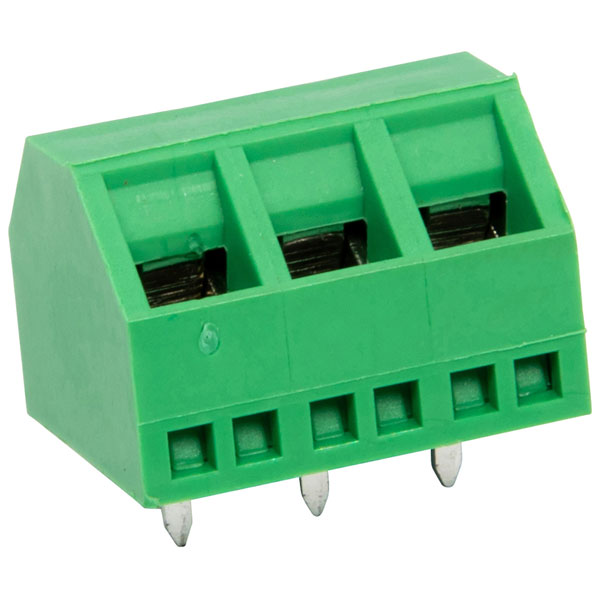

Camblock Plus CTBP3008/3 5.08mm 45 Degree Rising Clamp Terminal Block 3p

CamdenBoss
Order Code:

20-3052

Brand: CamdenBoss MPN: CTBP3008/3

Discontinued


A 3-pole 5.08mm pitch professional rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism and guided pin alignment.


  • Length 16.16mm
  • 45° Mounting
  • Rating 24A 250V
  • Interlocking modules
  • Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.


Pitch 5.08mm
No. of Ways 3
Mounting Type Through Hole
Mounting Direction 45°
Wire Gauge (AWG) 26 to 14AWG
Wire Termination Rising clamp
Voltage Rating 250V
Current Rating 24A
Colour Green
Wire Gauge 2.08mm²
