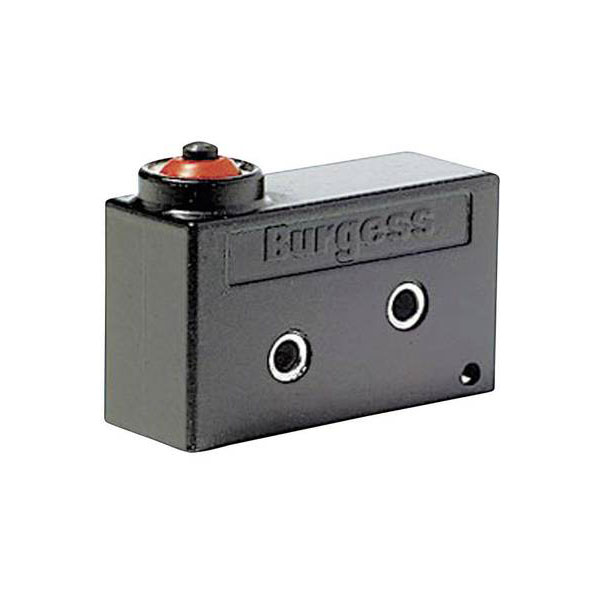

Burgess V9NLR1H Microswitch 250V 10A On/(On) IP67 Momentary Metal Housing

The Burgess V9NLR1H microswitch is a miniature switch capable of handling 250 V AC and 10 A, featuring a momentary On/(On) operation and IP67 protection for enhanced durability. It is designed for applications requiring precise actuation with reliable performance, often utilised in industrial and automotive environments. The robust construction makes it suitable for use under adverse conditions, ensuring consistent operation in demanding settings.

Type	Microswitch
Contact Configuration	SPDT
Switch Function	momentary
Current Rating (Amps)	10A
Voltage Rating - AC	250 VAC
Actuating Force	6N
Connection	Open end cable
Contact Material	Ag
Contact Type	1 change-over
Dim	(L x W x H) 16 x 42 x 24.5 mm
Height	24.5mm
IP Rating	IP67
Length	16mm
Maximum Temperature	+85°C
Min. temperature	-40°C
Switch position	1 x On/(On)
Switching Voltage	250V AC
Width	42mm
