Boxexpert BXPJSGH686-2 Junction Box IP68 Waterproof -40°C to +105°C 35x138x42mm

Boxexpert
Extended range
Order Code:

08-6440

Brand: Boxexpert MPN: BXPJSGH686-2 EAN-13: 4260543454388
Qty Unit Price (Ex VAT)
1+ £6.89
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

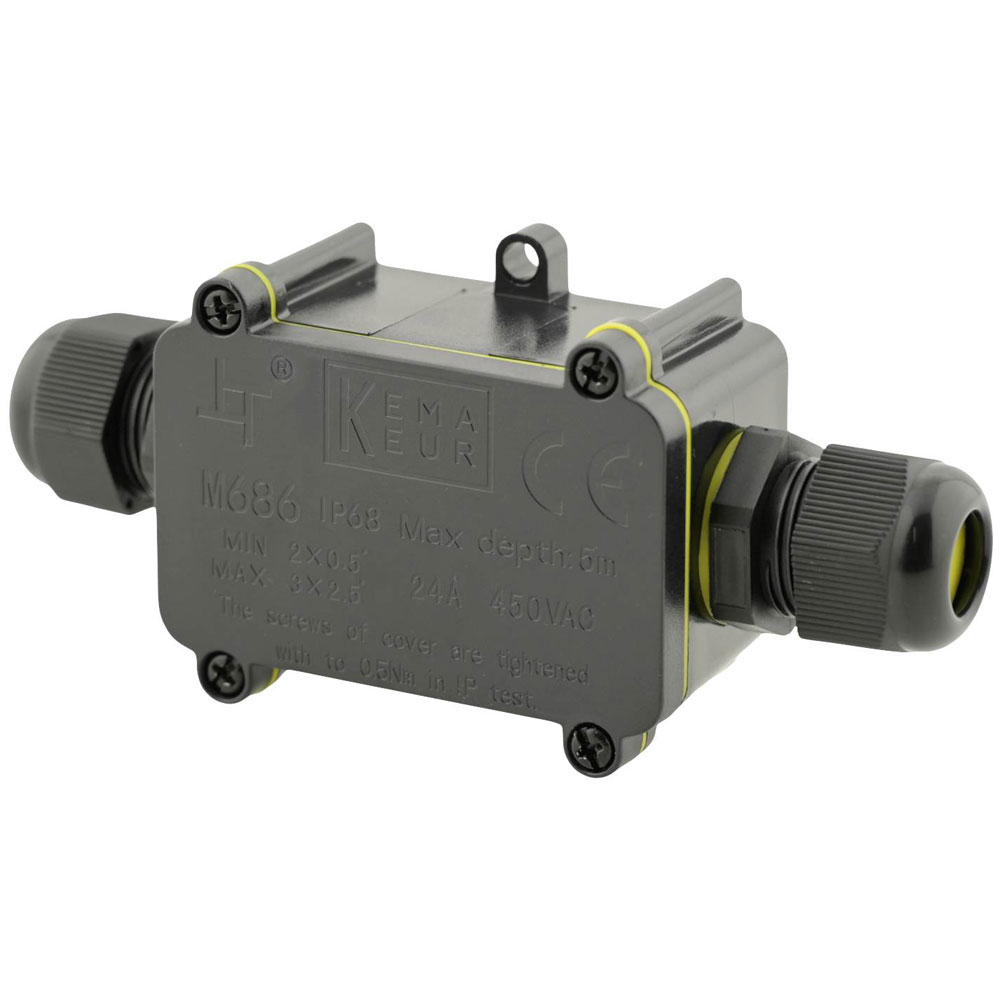

Boxexpert's BXPJSGH686-2 is a junction box measuring 35 x 138 x 42 mm. This robust enclosure is ideal for protecting electrical connections in various applications. Typical uses include housing circuits in residential, commercial, or industrial environments.
Amperage (max.) 24A
Connection M20 (5-12mm cable cross-section) with appropriate reduction pieces
Contact material Tin plated
Core cross section (max.) 2.5mm²
Core cross section (min.) 0.5mm²
Dim (L x W x H) 35 x 138 x 42 mm
Factory colour Black
Halogen-free Yes
Height 42mm
Inputs / outputs 2 single / 1x input 1x output
IP rating IP68
Length 35mm
Mounting Type Surface-mount
Operating temperature (max.) +105°C
Operating temperature (min.) -40°C
Total number of pins 3
Type Junction box
Voltage (max.) 450V AC
Width 138mm
