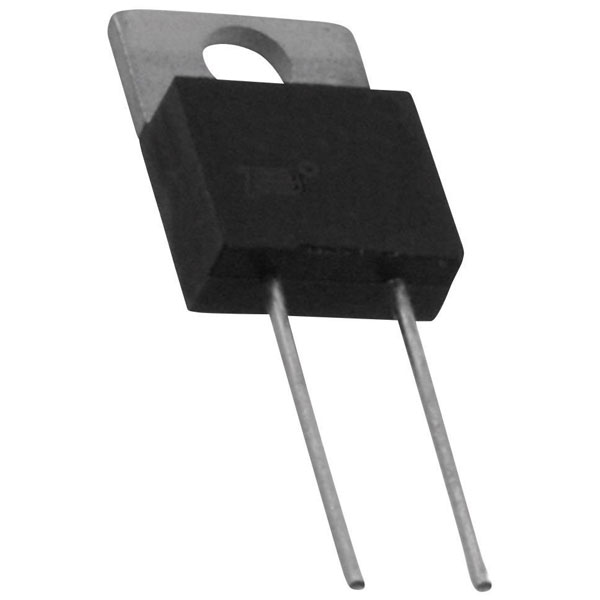

Bourns PWR221T-30-R100F High power resistor 0.1 Ω Radial lead TO 220 30 W 1%

Bourns PWR221T-30-R100F is a high power resistor designed to deliver reliable performance in demanding applications. Featuring a resistance of 0.1 ohms with a precision tolerance of 1%, this component is housed in a TO-220 package with radial leads, enabling efficient heat dissipation and ease of mounting on circuit boards. With a power rating of 30 watts, it is suitable for use in power electronics, motor drives, and power supply circuits, where high power handling is essential. The PWR221T-30-R100F ensures stability and consistent performance across a range of thermal conditions, making it ideal for both industrial and consumer electronic devices. Its robust design ensures long-term reliability, which is crucial in applications requiring high precision and consistent current limitation.

Type	High power Resistor
Resistance	0.1Ω
Tolerance	1%
Power Rating	30W
Content	1
Cross Section	4.83mm
Dimensions	(L x W x H) 30.48 x 10.66 x 3.33 mm
Height	3.33mm
Length	30.48mm
Max. temperature	+155°C
Maximum Temperature	+155°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Temperature Coefficient	100ppm/°C
Threshold Voltage	1.7 V
Width	10.66mm
