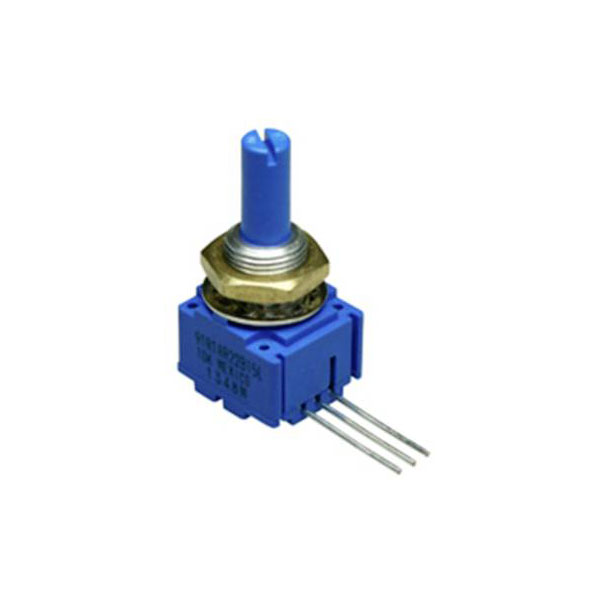

Bourns 91R1A-R22-B15L Rotary Potentiometer Plastic Film 1W 10kΩ

Bourns 91R1A-R22-B15L rotary potentiometer is a precision-engineered component designed for smooth and reliable operation. This potentiometer employs a robust plastic film for durability and features a power rating of 1 watt, with a resistance value of 10 kO, making it suitable for a wide range of electronic applications. Engineers commonly utilise this component in circuit designs needing variable resistance, such as audio mixing consoles, instrumentation panels, and other control systems where precise resistance adjustments are necessary. Its slide-type configuration ensures user-friendly integration into complex assemblies, facilitating ease of adjustment and maintenance. The 91R1A-R22-B15L is valued for its consistency and longevity in demanding environments, making it a preferred choice among professionals.

Type	91R1A-R22-B15L
Resistance	10kΩ
No of Turns	1
Power Rating	1W
Axle Diameter	6mm
Connection	Solder pins
Content	1
Dimensions	(L x W) 15.88 mm x 17.45 mm
Electrical Angle	240°
Length	15.88mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	300°
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Plastic film pot
Resistance characteristic	linear
Width	17.45mm
