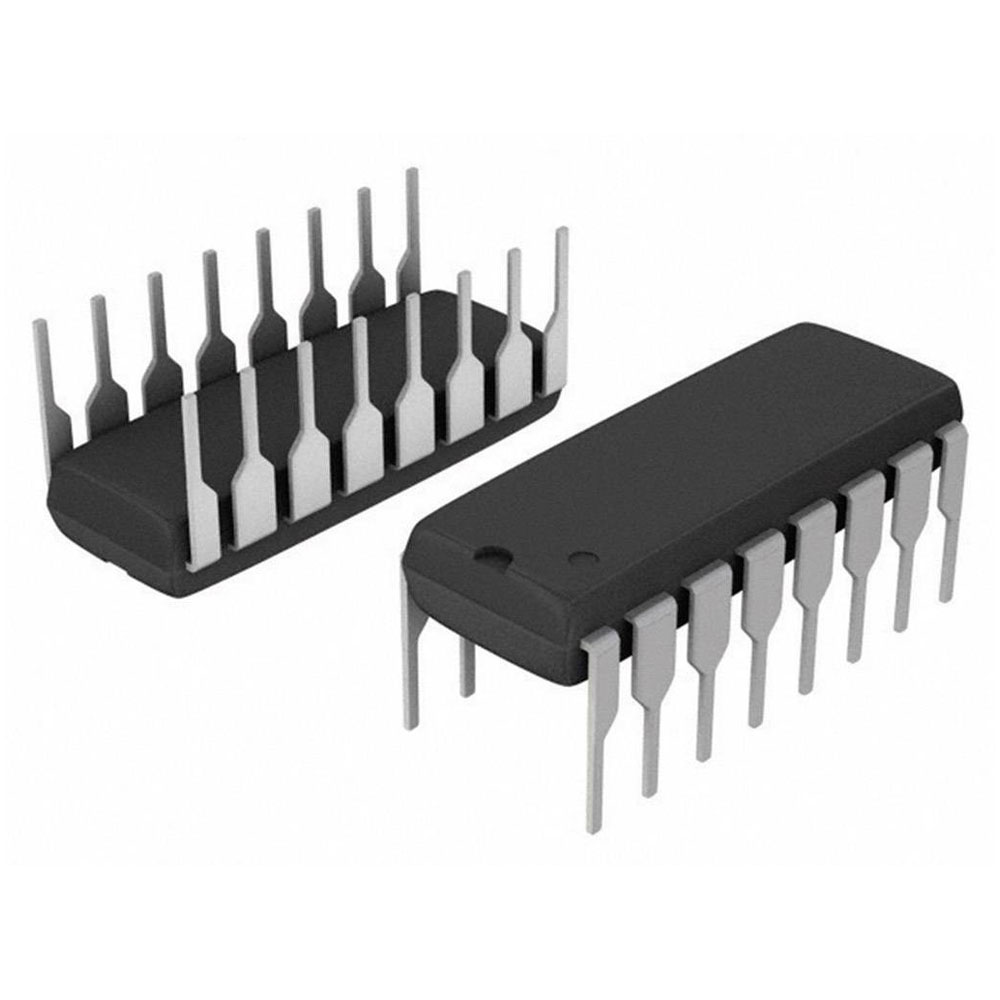

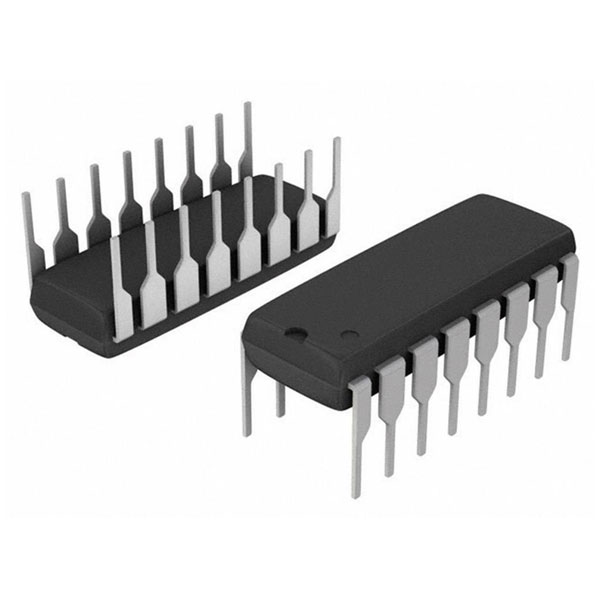

Bourns 4116R-1-151Lf Resistor Ladder 150Ω Radial Lead Dip 16 0.25 W

Bourns 4116R-1-151Lf is a resistor array commonly used in electronic circuits to ensure precise resistance values in a compact format. This component features a resistor ladder configuration with a resistance of 150 ohms and is designed in a radial lead dual in-line package (DIP) with 16 pins. It supports a power rating of 0.25 watts, making it suitable for applications where moderate power handling is required. The 4116R-1-151Lf resistor ladder is particularly useful in digital-to-analogue converters, operational amplifiers, and other circuitry where space-saving and high precision are critical. Its robust design allows it to be integrated into a wide range of electronic devices, enhancing performance through reliable resistance arrangements.

Type	Resistor ladder
Resistance	150Ω
Number of Resistor	8
Power Rating	0.25W
Tolerance	2%
Network Type	Isolated
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 21.97 x 4.69 x 7.62 mm
Height	7.62mm
Length	21.97mm
Temperature Coefficient	100ppm/°C
Width	4.69mm
