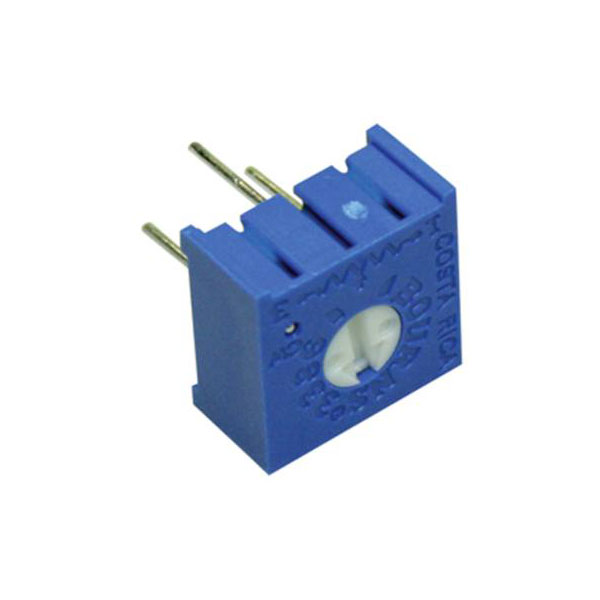

Bourns 3386P-1-105LF Cermet trimmer linear 0.5 W 1 MΩ 280°-310° 1 pc

Bourns 3386P-1-105LF is a precision cermet trimmer potentiometer designed for linear adjustment, with a resistance value of 1 MO and a power rating of 0.5 watts. It features an effective rotational span between 280° and 310°, providing nuanced control over electrical circuits requiring fine-tuning of resistance. This product variant, also identified by the alternate description 2996289, is commonly utilised in applications such as calibration circuits, adjustable frequency circuits, and variable gain amplifiers, where precise resistance tuning is paramount for optimal circuit performance. The robust construction and reliable performance make it suitable for use in a variety of demanding environments where calibration accuracy is crucial.

Resistance	1MΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 9.53 x 4.83 x 9.53 mm
Electrical Angle	280°
Height	9.53mm
Length	9.53mm
Maximum Temperature	125°C
Mechanical Angle	310°
Minimum Temperature	-55°C
No. of rotations	1
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
