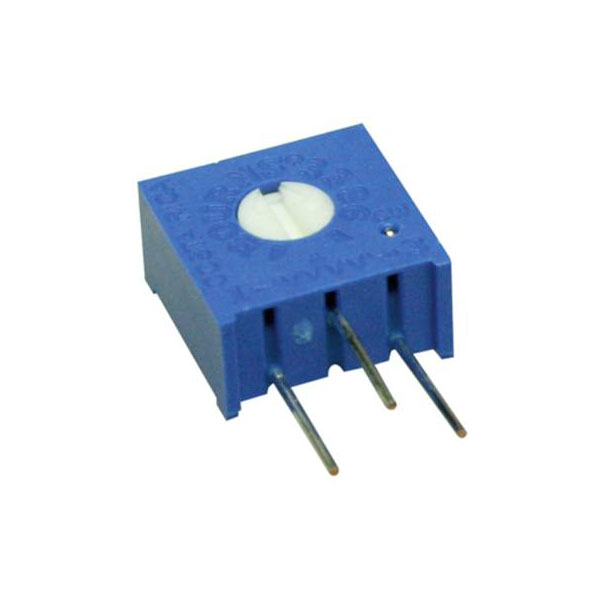

Bourns 3386H-1-103LF trimmer cermet linear 0.5 W 10 kΩ 280° 1 pc

Bourns 3386H-1-103LF is a precision trimmer cermet potentiometer renowned for its reliable performance and versatility in circuit design applications. This product, also identified by the alternate description 2996285, features a resistance of 10 kO and a power rating of 0.5 watts, with a smooth rotational adjustment over an angle of 280 degrees. The 3386H-1-103LF is particularly suitable for use in calibrating equipment, setting operational amplifier gains, and tuning signal timing circuits, where precise resistance adjustment is essential. Its compact size and robust construction make it an excellent component for high-density boards used in telecommunications, industrial electronics, and consumer devices. With Bourns' reputation for quality, this trimmer is designed to meet the rigorous demands of modern engineering environments.

Type	Cermet Trimmer
Resistance	10kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	1
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 9.53 mm
Electrical Angle	280°
Height	9.53mm
Length	9.53mm
Maximum Temperature	125°C
Mechanical Angle	310°
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
