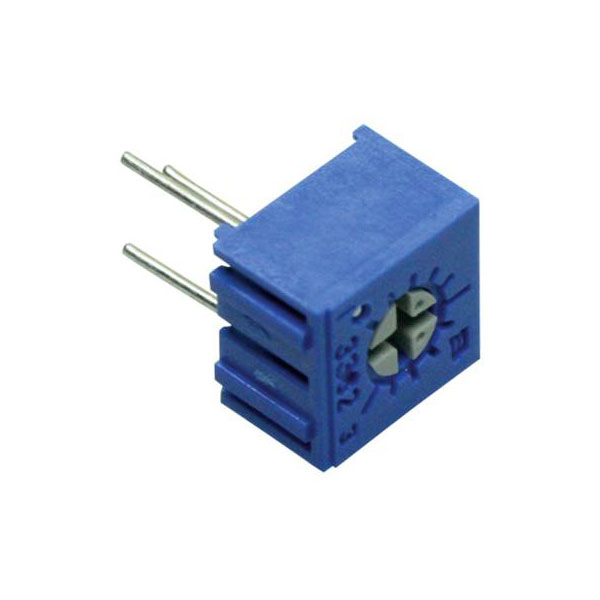

Bourns 3362H-1-102LF Cermet trimmer linear 0.5W 1kΩ 240° 270° 1pc

Bourns 3362H-1-102LF Cermet trimmer, an advanced component engineered for precise resistance adjustments in electronic circuits. With a resistance value of 1 kO, this product features a cermet element, ensuring high reliability and stability under varying environmental conditions. It carries a power rating of 0.5 watts, and facilitates an adjustment range of 240° to 270°, making it suitable for fine-tuning applications in consumer electronics, communication devices, and industrial control systems. The part, also known by the alternate description 2996276, fits seamlessly into printed circuit boards, offering engineers a resilient solution for resistance calibration tasks.

Resistance	1kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.6 x 6.99 x 4.88 mm
Electrical Angle	240°
Height	4.88mm
Length	6.6mm
Maximum Temperature	125°C
Mechanical Angle	270°
Minimum Temperature	-55°C
No. of rotations	1
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	6.99mm
