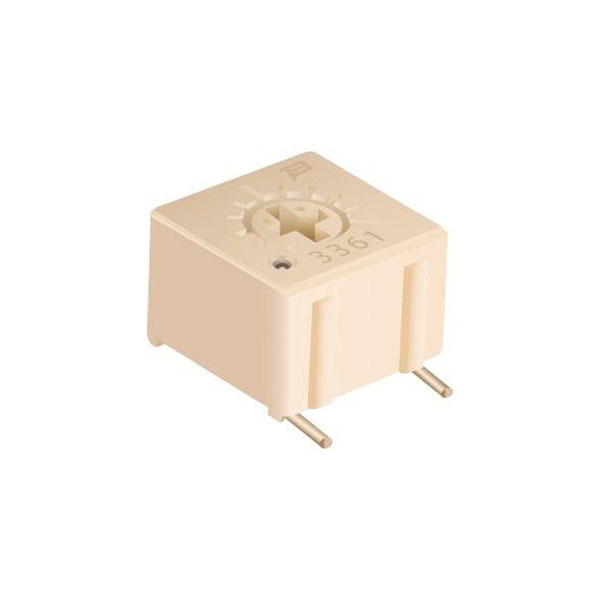

Bourns 3361P-1-104GLF cermet trimmer linear 0.5 W 100 kΩ 240° 270° 1 pcs

Bourns 3361P-1-104GLF is designed to provide precise resistance tuning in electronic circuits. The cermet trimmer potentiometer offers a resistance of 100 kO and is capable of handling a power rating of 0.5 watts. It features a linear adjustment with a rotational range between 240° and 270°, ensuring fine control in various applications. This trimmer is typically utilised in circuits requiring precision adjustment such as in calibration settings, feedback circuits, and tuning of signal paths in instrumentation and control systems. With its robust design and precise specifications, the Bourns 3361P-1-104GLF serves as a critical component for engineers seeking reliable performance in demanding environments.

Type	Cermet Trimmer
Resistance	100kΩ
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	1
Connection	SMT
Content	1
Cross Section	5.08mm
Dimensions	(L x W x H) 6.71 x 7.04 x 5.21 mm
Electrical Angle	240°
Height	5.21mm
Length	6.71mm
Max. temperature	125°C
Maximum Temperature	125°C
Mechanical Angle	270°
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	7.04mm
