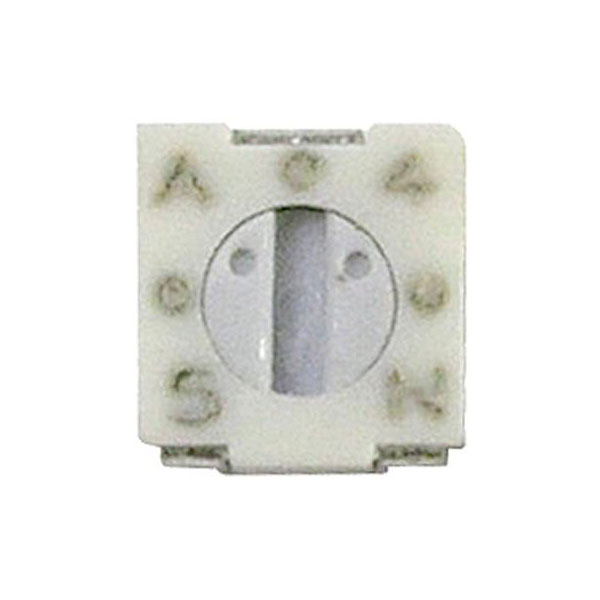

Bourns 3313J-1-203E Cermet trimmer 0.125 W 20 kΩ 220° 250° 1 pcs

Bourns 3313J-1-203E, also known by the alternate description 2996250, is a precision cermet trimmer potentiometer specifically designed to provide precise resistance adjustment in electrical circuits. This product features a resistance value of 20 kO and can handle a power rating of 0.125 W, perfect for applications requiring fine-tuning of voltage or signal levels. The device offers a rotational angle between 220° and 250°, providing smooth and predictable performance. Such components are ideally suited for use in calibration circuits, sensor adjustments, and other settings where precise electrical tuning is essential. The Bourns 3313J-1-203E is manufactured to meet the demanding needs of engineers requiring reliable and adjustable resistance elements in their projects.

Type	Cermet Trimmer
Resistance	20kΩ
Power Rating	0.12500W
Adjustment Type	Top
Number of Turns	1
Connection	SMT
Content	1
Cross Section	2.3mm
Dimensions	(L x W x H) 3.5 x 3.2 x 2.2 mm
Electrical Angle	220°
Height	2.2mm
Length	3.5mm
Maximum Temperature	125°C
Mechanical Angle	250°
Minimum Temperature	-55°C
Operation type	top
Temperature Coefficient	100ppm/K
Tolerance ±	20%
Width	3.2mm
