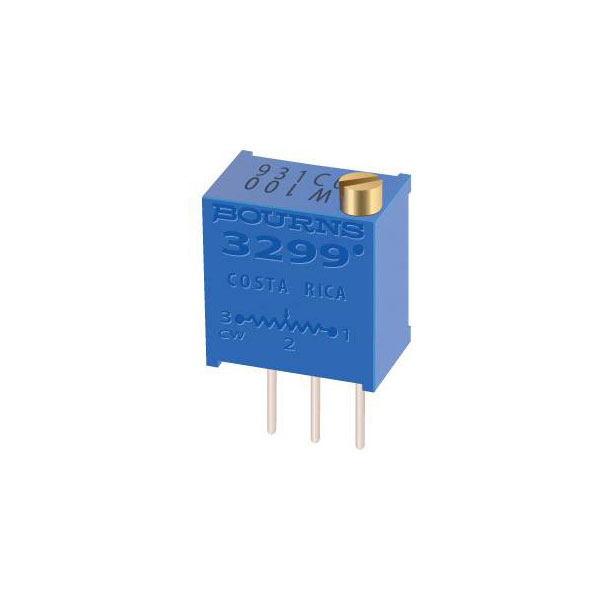

Bourns 3299Y-1-501LF Cermet trimmer linear 0.5W 500Ω 9° single unit

Bourns 3299Y-1-501LF is a precision cermet trimmer potentiometer designed for fine electrical resistance adjustment applications. With an electrical power handling capability of 0.5 watts and a resistance of 500 ohms, this single-turn linear trimmer provides reliable performance for circuit tuning and calibration. Its 9 degree adjustment allows for precise resistance setting, vital for applications such as precision analogue circuits, voltage dividers, and variable gain control. As an industry-standard component, the 3299Y-1-501LF is suitable for use in various electronic equipment, including communication devices and instrumentation systems, where accuracy and stability are critical.

Type	Cermet Trimmer
Resistance	500Ω
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
