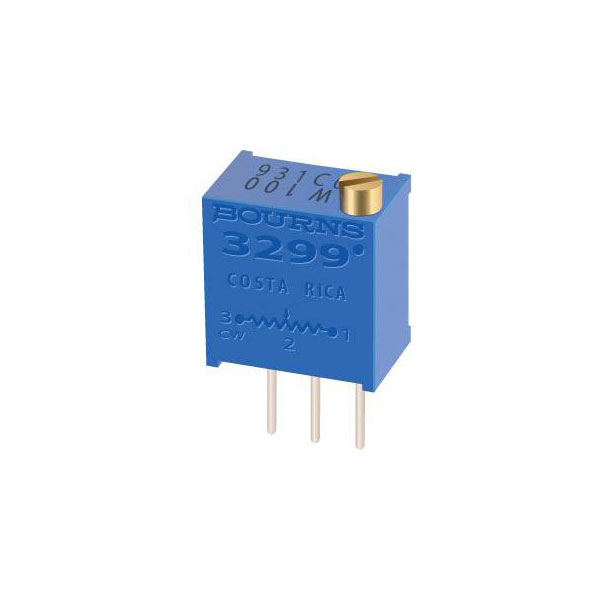

Bourns 3299Y-1-104LF Cermet trimmer linear 0.5 W 100 kΩ 9° 1 pc(s)

Bourns 3299Y-1-104LF is a versatile cermet trimmer potentiometer featuring a resistance value of 100 kO and capable of handling up to 0.5 watts of power. Engineered for precision, it has a rotary adjustment angle of 9 degrees, allowing fine-tuning and adjustment for various electrical circuits. The solid reliability of this component makes it suitable for applications in calibration equipment, sensor adjustments, and voltage dividers within electronic devices. Known also by its alternate description 2996243, this Bourns product is designed to offer enduring performance in environments where resilient components are crucial. Whether used in prototyping or production environments, it ensures stability and precision in a wide range of engineering applications.

Resistance	100kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
