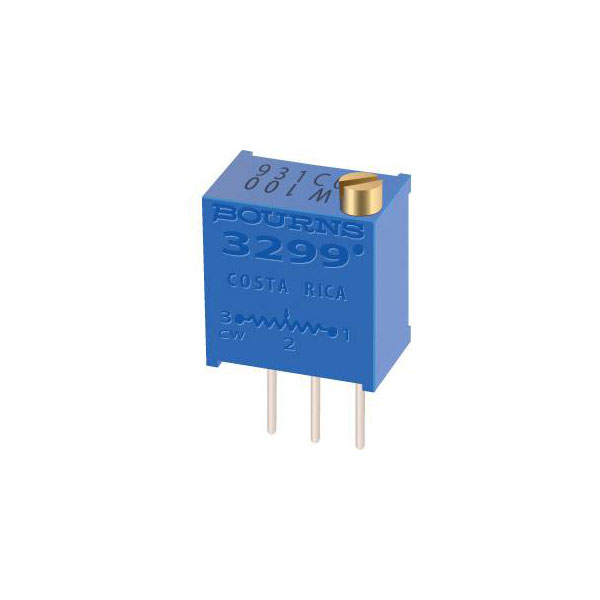

Bourns 3299W-1-503LF 3299W Cermet trimmer linear 0.5 W 50 kΩ 9° 1 pc trimmer

Bourns 3299W-1-503LF is a high-precision cermet trimmer potentiometer designed for applications necessitating fine-tuning of resistance in electronic circuits. This linear trimmer offers a resistance value of 50 kO and a power rating of 0.5 watts, ensuring reliable performance in a compact form factor. With a rotational angle of 9°, the component provides precise adjustment capabilities, making it suitable for use in calibration and tuning of circuitry within test equipment, audio devices, and sensor systems. This product, also identified as 2996241 by Bourns, exemplifies dependable performance and high durability, aligning with the needs of engineers requiring adjustable resistive elements in sophisticated electronic designs.

Resistance	50kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
