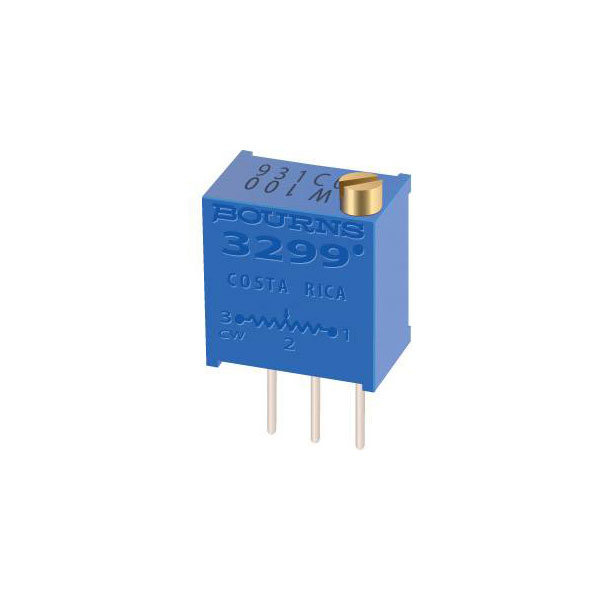

Bourns 3299W-1-202LF Cermet trimmer linear 0.5 W 2 kΩ 9° 1 pc(s)

Bourns 3299W-1-202LF, also known by the alternate description 2996238, is a cermet trimmer with a linear resistance of 2 kO capable of dissipating 0.5 watts. This component is engineered for precision applications where fine-tuning of resistance is required, with its design incorporating a 9° adjustment for greater accuracy. Typically utilised in circuit design, it is frequently employed in calibration settings, operational amplifiers, and sensor adjustment circuits, where its reliability and precision adjustments are critical. The compact form factor and robust construction of the Bourns 3299W-1-202LF make it a valuable asset in both prototyping and final production designs in various electronic applications.

Type	Cermet Trimmer
Resistance	2kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Top
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 10.03 x 9.53 x 6.1 mm
Electrical Angle	9°
Height	6.1mm
Length	10.03mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	9.53mm
