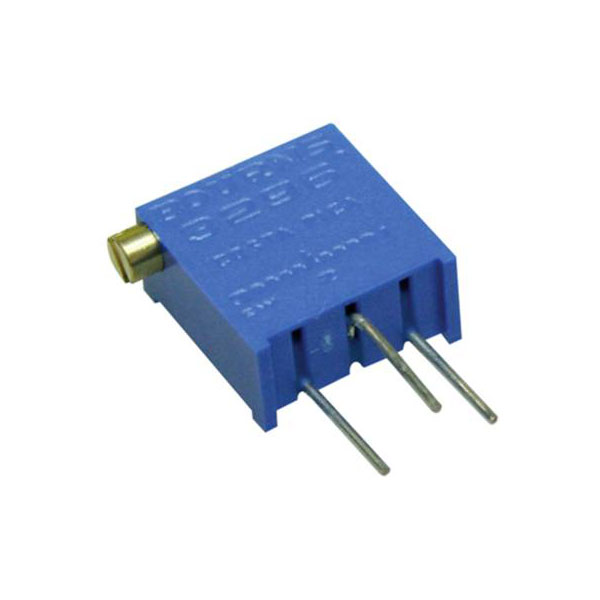

Bourns 3296Z-1-502LF Cermet trimmer linear 0.5 W 5 kΩ 9 ° 1 pc

Bourns 3296Z-1-502LF is a precision cermet trimmer potentiometer designed to offer reliable performance in a variety of electrical and electronic applications. This product, also known by the alternate description 2996233, features a linear resistance of 5 kO and is capable of handling a power rating of 0.5 Watt. The component is engineered with an adjustment angle of 9 degrees, allowing fine tuning for precise resistance settings essential in circuit calibration. Due to its robust construction and accurate adjustment capabilities, it is commonly used in instrumentation, control systems, and other circuits requiring adaptable resistance for optimal operating conditions.

Type	Cermet Trimmer
Resistance	5kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
