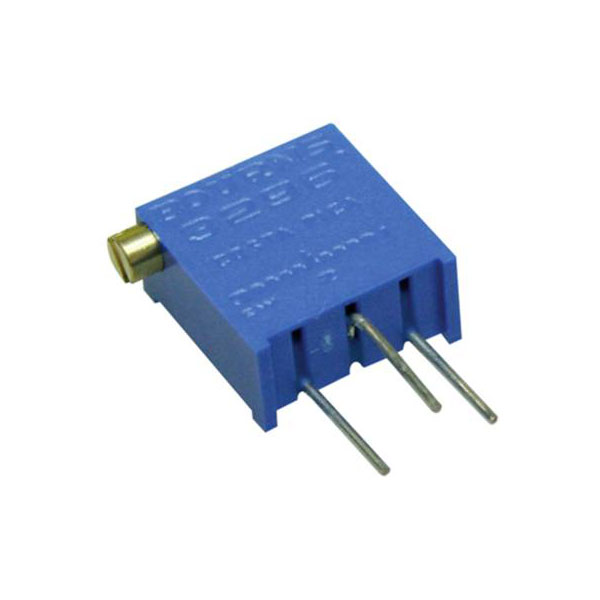

Bourns 3296Z-1-501LF Cermet trimmer linear 0.5 W 500 Ω 9 ° 1 pc

Bourns 3296Z-1-501LF is a precision cermet trimmer potentiometer designed for sensitive electronic applications, offering a linear resistance of 500 ohms with a power rating of 0.5 watts. This component features a compact design with a 9-degree adjustment, making it suitable for applications requiring fine-tuning of resistance values in circuits. It is commonly employed in industrial control, audio circuits, and as a calibration tool in measurement equipment due to its reliable performance and durability. Bourns has engineered the 3296Z-1-501LF to provide stable and repeatable resistance adjustments, making it an integral component in various fields requiring precise electronic tuning.

Type	Cermet Trimmer
Resistance	500Ω
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
