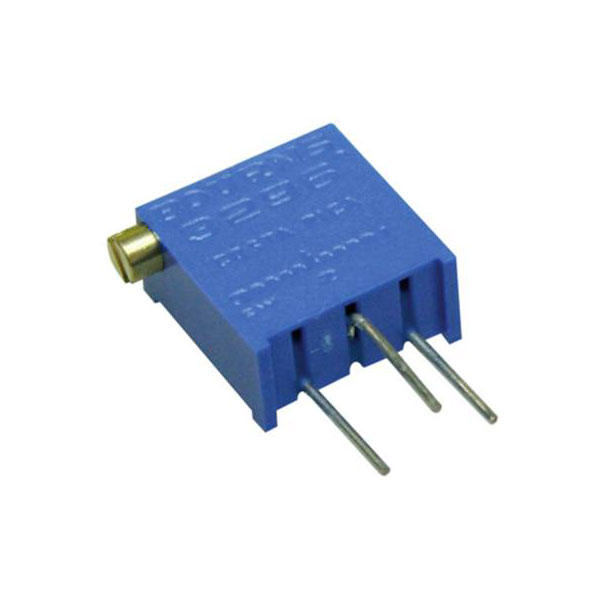

Bourns 3296Z-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 9° 1 pc

Bourns 3296Z-1-103LF is a precise cermet trimmer with a linear adjustment capability, designed to offer a resistance of 10 kO. This component is recognised under the alternate description 2996226 and is capable of handling a power rating of 0.5 watts, making it suitable for applications requiring reliable fine-tuning of circuit parameters. The trimmer features a resolution of 9°, which ensures accurate and stable adjustments, and it is composed of high-quality materials that enhance its durability and performance in various electronic devices. Typical engineering applications include calibration of circuits, setting reference voltages, and adjusting timing components in both analogue and digital circuits. Its robust construction and precise control make it an essential component for tasks requiring meticulous adjustment within electrical systems.

Type	Cermet Trimmer
Resistance	10kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Max. temperature	125°C
Maximum Temperature	125°C
Min. temperature	-55°C
Minimum Operating Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
