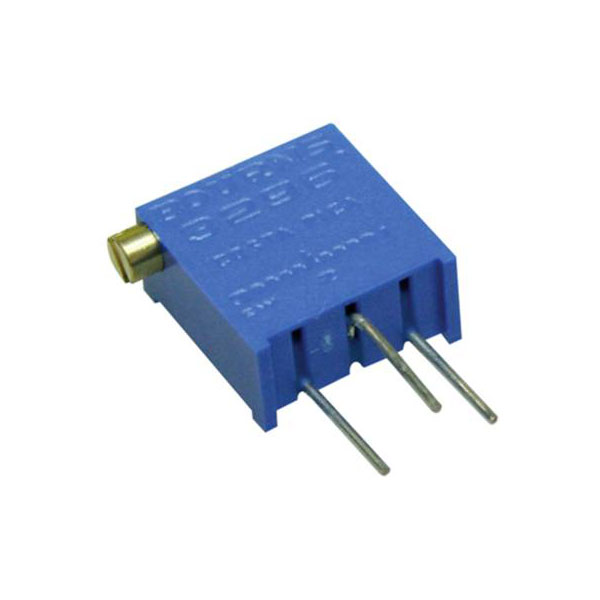

Bourns 3296Z-1-102LF Cermet trimmer linear 0.5 W 1 kΩ 9 degrees 1 pc

Bourns 3296Z-1-102LF, identified with the alternate description 2996225, is a Cermet trimmer potentiometer that offers precision in resistance adjustment. This model has a resistance value of 1 kO and a power rating of 0.5 watts, making it suitable for applications that require fine-tuning of electrical parameters. The trimmer features a linear adjustment mechanism with a rotation span of 9 degrees, enabling accurate resistance changes. It is commonly used in circuits requiring calibration, such as in sensor signal tuning, operational amplifier offset adjustment, and frequency trimming in communication equipment. Bourns, known for their reliability in component manufacturing, provides the 3296Z-1-102LF as a versatile solution for various electronic circuitry needs.

Type	Cermet Trimmer
Resistance	1kΩ
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
