Bourns 3296Y-1-222LF Cermet trimmer linear 0.5 W 2.2 kΩ 9° 1 pc blue

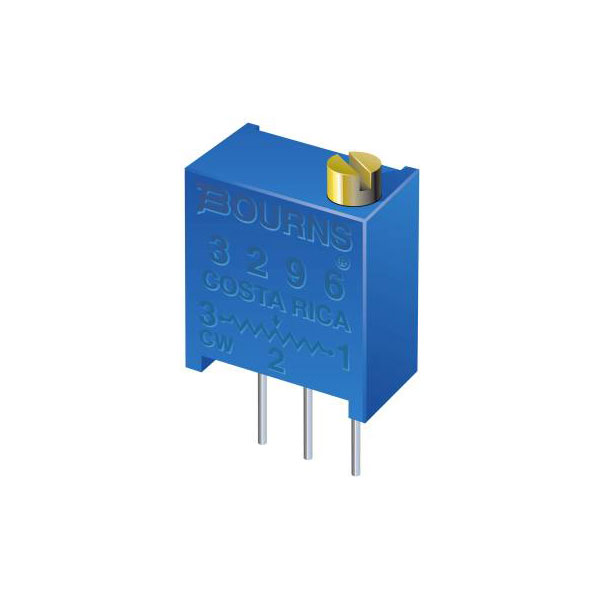

Bourns 3296Y-1-222LF is a cermet trimmer potentiometer that offers reliable performance for precise adjustments. Rated at 0.5 watts, this linear trimmer provides a resistance of 2.2 kO with a resolution of 9°, allowing for fine-tuning in electronic circuits. This robust component, in its blue encapsulation, is identified under the alternate description 2996218 - Bourns 3296Y-1-222LF. It is commonly utilised in applications such as calibration, tuning, and circuit prototyping where precision and reliability are essential. The compact design makes it suitable for integration into various electronic devices, providing engineers with an adaptable solution for resistance control.

Resistance	2.2kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
