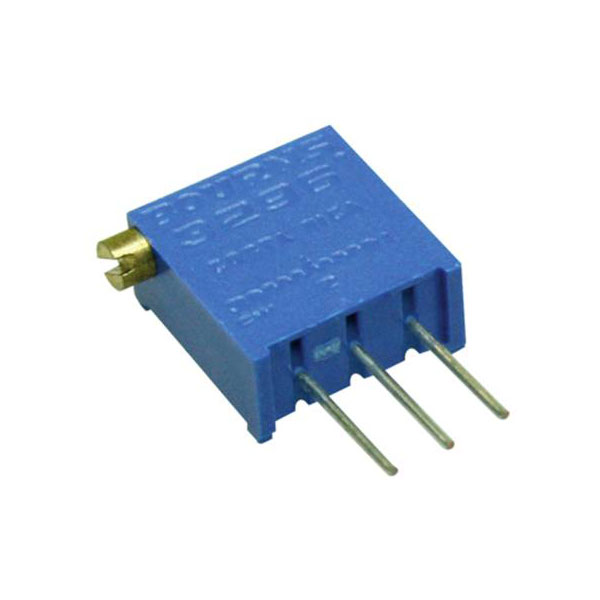

Bourns 3296X-1-202LF Cermet trimmer linear 0.5 W 2 kΩ 9° 1 pc

Bourns 3296X-1-202LF is a high-precision cermet trimmer resistor, also known by its alternate description 2996201. This component features a linear adjustment mechanism, a resistance of 2 kO, and is capable of handling a power rating of 0.5 watts. It provides a rotational adjustment of 9 degrees, offering fine-tuning capabilities in electronic circuits where precise resistance calibration is required. Common engineering applications for this trimmer potentiometer include use in analogue circuit tuning, sensor calibration, and as a variable component in control systems. Its robust construction and reliable performance make it a preferred choice for precision electronic design tasks.

Resistance	2kΩ
Power Rating	0.5W
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
No. of rotations	25
Operation type	side
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
