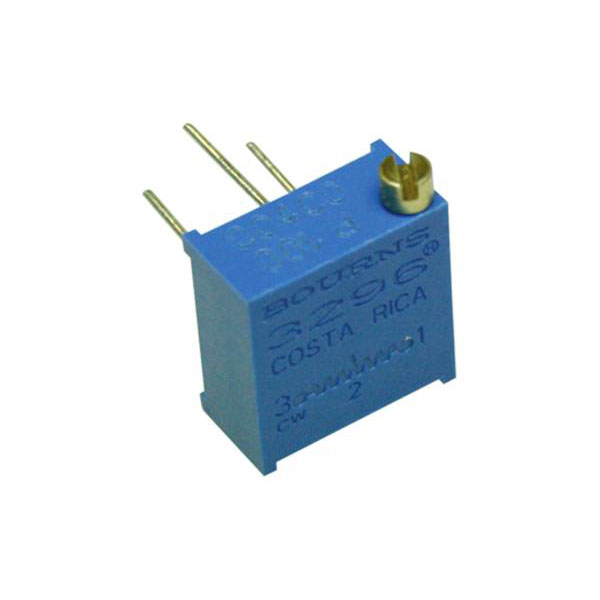

Bourns 3296P-1-201LF Cermet trimmer linear 0.5 W 200 Ω 9 ° single

Bourns 3296P-1-201LF is a precision cermet trimmer with a linear taper, offering a resistance of 200 ohms and a maximum power rating of 0.5 watts. This single-turn trimmer is engineered with a 9-degree adjustment angle, allowing for precise manual tuning in circuit designs. Known also by the alternate description 2996176 - Bourns 3296P-1-201LF, it is commonly used in applications where fine-tuning of resistance is necessary, such as in calibration circuits, voltage division, and signal conditioning. Its robust construction makes it suitable for demanding environments, ensuring consistent performance and long-term reliability in electronic applications.

Type	Cermet Trimmer
Resistance	200Ω
Tolerance	± 10%
Power Rating	0.5W
Adjustment Type	Side
Number of Turns	25
Pitch	2.54mm
Connection	Solder pins
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 9.53 x 4.83 x 10.03 mm
Electrical Angle	9°
Height	10.03mm
Length	9.53mm
Maximum Temperature	125°C
Minimum Temperature	-55°C
Operation type	side
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.83mm
