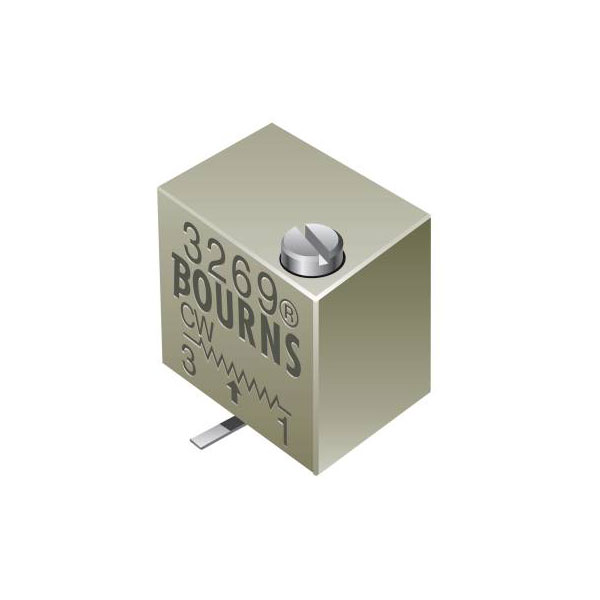

Bourns 3269W-1-504LF Cermet trimmer linear 0.25 W 500 kΩ 4320 ° 1 pc

Bourns 3269W-1-504LF is a high-precision cermet trimmer designed for linear applications, featuring a resistance value of 500 kO, a power rating of 0.25 W, and an operational rotational range of 4320 degrees. This product, also referred to by the alternate description 2996174 - Bourns 3269W-1-504LF, provides reliable performance in various electronic circuits where precise resistance adjustment is required. Typical engineering applications include calibration, tuning, and adjustment of electronic devices such as amplifiers, radios, and measurement equipment, where stable and accurate resistance is crucial for optimal functionality. With a robust construction intended to withstand demanding conditions, this trimmer potentiometer is suitable for use in both commercial and industrial contexts.

Resistance	500kΩ
Power Rating	0.25W
Connection	SMT
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.35 x 4.32 x 7.44 mm
Electrical Angle	4320°
Height	7.44mm
Length	6.35mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
No. of rotations	12
Operation type	top
Product Type	Cermet trimmer
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.32mm
