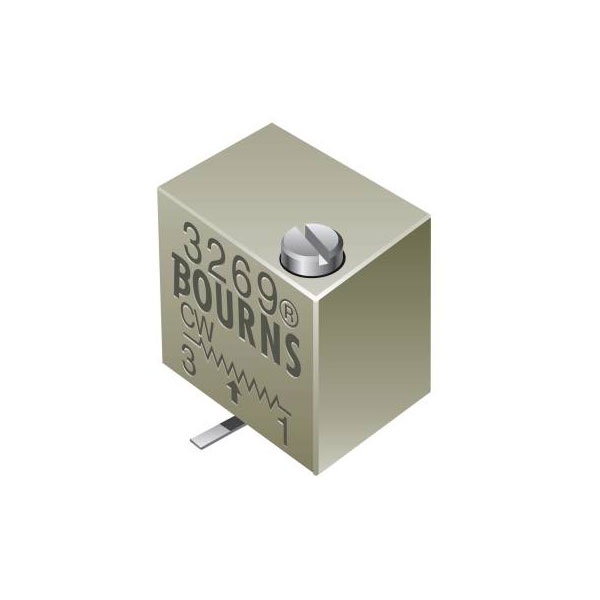

Bourns 3269W-1-103LF Cermet trimmer linear 0.25 W 10 kΩ 4320° 1 pc

Bourns 3269W-1-103LF, also known as 2996172, is a cermet trimmer potentiometer designed for precise resistance adjustments in electronic circuits. This linear trimmer offers a resistance value of 10 kO with a power rating of 0.25 watts, capable of withstanding a wide range of applications due to its durable construction and compact design. Engineered to provide a rotation angle of 4320°, it allows for fine-tuning in sensitive settings where accuracy and reliability are paramount. Typical applications include use in calibration equipment, adjustable power supplies, and signal conditioning circuits, where precision resistance control is essential. This product is an ideal choice for engineers seeking dependable performance in both prototyping and production environments.

Type	Cermet Trimmer
Resistance	10kO
Power Rating	0.25W
Adjustment Type	Top
Number of Turns	12
Pitch	2.54mm
Connection	SMT
Content	1
Cross Section	2.54mm
Dimensions	(L x W x H) 6.35 x 4.32 x 7.44 mm
Electrical Angle	4320°
Height	7.44mm
Length	6.35mm
Maximum Temperature	150°C
Minimum Temperature	-65°C
Operation type	top
Resistance characteristic	linear
Temperature Coefficient	100ppm/K
Tolerance ±	10%
Width	4.32mm
